PreSonus StudioLive 24R

StudioLive 24R

Article number: 210000000653

€1.259,00

Incl. tax

PreSonus 24-channel Series III StudioLive 24R is both a versatile AVB stage box for StudioLive Series III consoles and the most powerful rack mixer in its class.

FEATURES

AVB stage box for StudioLive Series III consoles with simple stage box mode and stage box + monitor mixer mode
Fully recallable, 32-channel, Series III digital rack mixer (24 mic/line inputs + 8 digital channels)

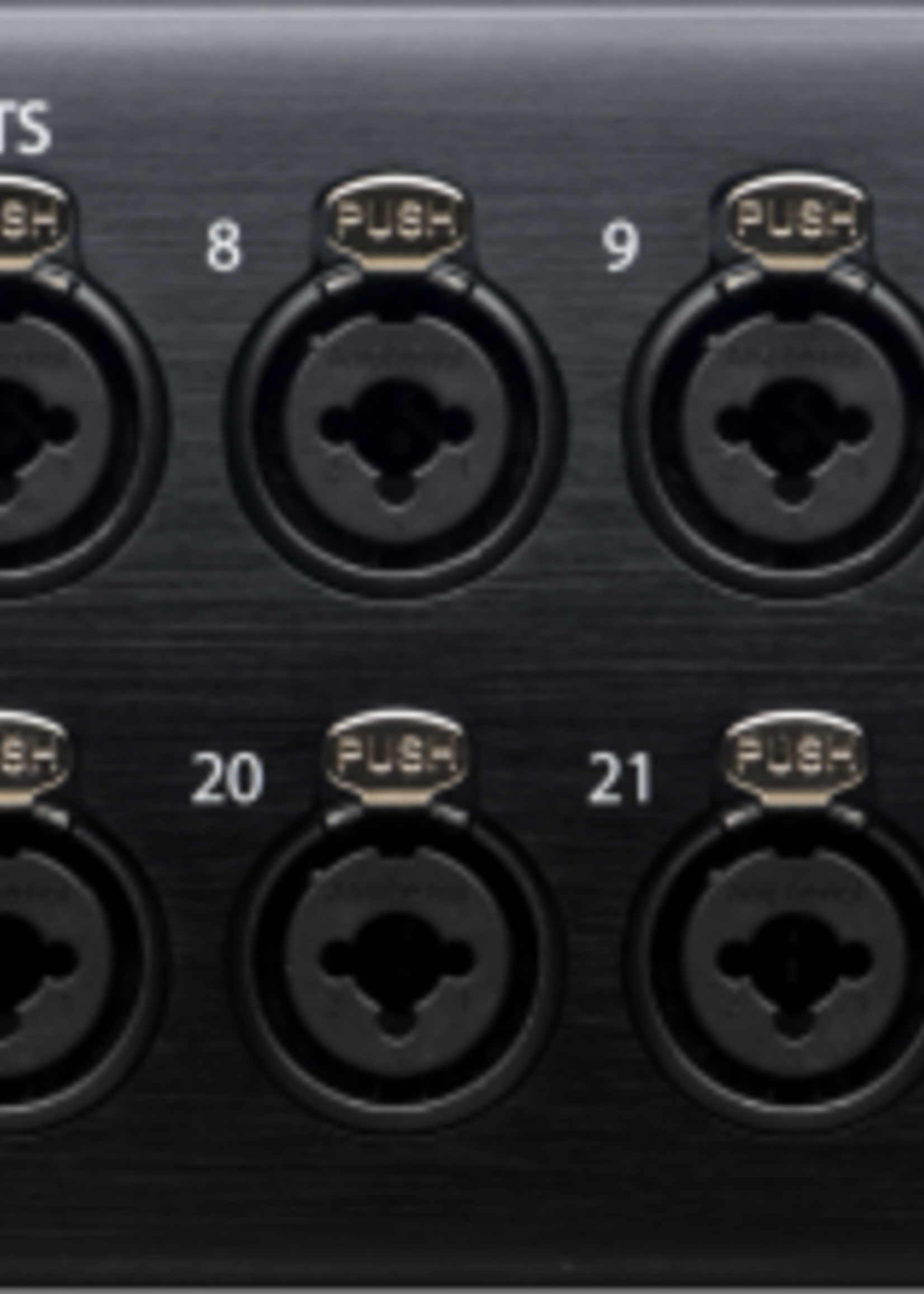

26 total inputs, including 24 locking combo mic/line channel inputs with recallable XMAX Class A mic preamps
16 FlexMixes (Aux mixes, Subgroups, or Matrix mixes) and 4 dedicated subgroups
40x40 USB 2.0 recording interface and 55x55 AVB recording interface
Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad, and Android; Capture live-recording software and Studio One® Artist DAW for Mac and Windows; compatible with free QMix-UC personal monitoring control for iPhone/iPod touch, and Android™

Electronics

VOLTAGE

220-240V EU

POWER REQUIREMENTS

35W (Continuous)

PHANTOM POWER

48 VDC, Switchable Per Channel (±2 VDC)

Performance

- DIGITAL AUDIO BIT DEPTH

- DIGITAL AUDIO DYNAMIC RANGE

ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)

- DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS

=+18 dBu

- DIGITAL AUDIO TOTAL SYSTEM LATENCY

1.9 ms (local routing, analog in-analog out, all processing active)

Inputs

LINE INPUT CONNECTION TYPE

RCA Female, Unbalanced (Stereo Pair)

LINE INPUTS MAXIMUM LEVEL

+12 dBu, ±0.5 dBu

MICROPHONE INPUT CONNECTION TYPE

Combo Locking XLR Mic - 1/4” TRS Line

MICROPHONE PREAMP COMMON MODE REJECTION RATIO

65 dB (1 kHz at Unity Gain)

MICROPHONE PREAMP FREQUENCY RESPONSE

20-20 kHz (±0.5 dBu at Unity Gain)

MICROPHONE PREAMP GAIN CONTROL RANGE

0 dB to +60 dB (±1 dB)

MICROPHONE PREAMP INPUT IMPEDANCE

1 kΩ

MICROPHONE PREAMP MAXIMUM INPUT LEVEL

=+12 dBu (Unity Gain)

MICROPHONE PREAMP SIGNAL TO NOISE RATIO

94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

MICROPHONE PREAMP TOTAL HARMONIC DISTORTION

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Outputs

- HEADPHONE OUTPUTS FREQUENCY RESPONSE

20 Hz to 20 kHz, +/-0.5 dB

- HEADPHONE OUTPUTS MAXIMUM OUTPUT

100 mW/ch. 60Ω Load

- HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO

96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

- HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION

0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

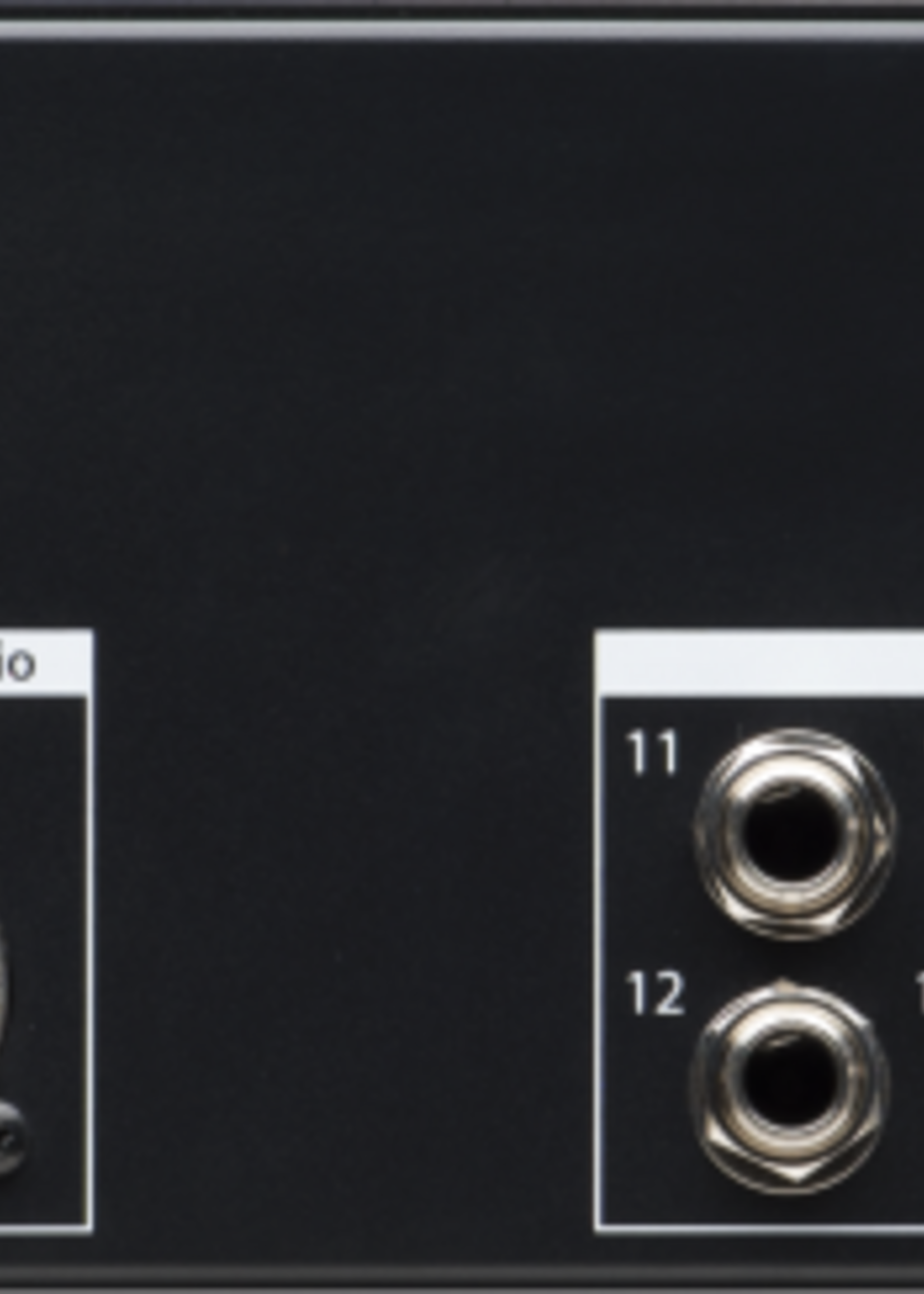

- LINE OUTPUTS CONNECTION TYPE

1/4" TRS, Balanced

- LINE OUTPUTS MAXIMUM OUTPUT LEVEL

=+18 dBu, ±0.5 dBu

- LINE OUTPUTS OUTPUT IMPEDANCE

100 Ohms

Hardware

DIGITAL AUDIO AVB AUDIO NETWORK PORTS

Locking XLR Ethernet

DIGITAL AUDIO NETWORK CONTROL PORT

RJ-45

DIGITAL AUDIO USB RECORDING PORT

USB 2.0, Type-B
