PreSonus StudioLive 16R

StudioLive 16R

Article number: 210000000639

~~€1.299,00~~ €899,00 Incl. tax

StudioLive Series III consoles and the most powerful rack mixer in its class. It can operate as a simple stage box or as a combined stage box/monitor mixer, including remote control of the preamps and phantom power from the Series III console.

FEATURES

AVB stage box for StudioLive Series III consoles with simple stage box mode and stage box + monitor mixer mode
Fully recallable, 16-channel, Series III digital rack mixer
18 total inputs, including 16 locking combo mic/line channel inputs with recallable XMAX Class A mic preamps and 2 RCA inputs (Ch. 15-16)
6 FlexMixes (Aux mixes, Subgroups, or Matrix mixes)
18x18 USB 2.0 recording interface and 32x32 AVB recording interface
Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad, and Android; Capture live-recording software and Studio One Artist DAW for Mac and Windows; compatible with free QMix-UC personal monitoring control for iPhone/iPod touch, and Android.

Electronics

VOLTAGE

220-240V AU

POWER REQUIREMENTS

35W (Continuous)

PHANTOM POWER

48 VDC, Switchable Per Channel (±2 VDC)

Hardware

DIGITAL AUDIO AVB AUDIO NETWORK PORTS

Locking XLR Ethernet

DIGITAL AUDIO NETWORK CONTROL PORT

RJ-45

DIGITAL AUDIO USB RECORDING PORT

USB 2.0, Type-B

Inputs

LINE INPUT CONNECTION TYPE

RCA Female, Unbalanced (Stereo Pair)

LINE INPUTS MAXIMUM LEVEL

+12 dBu, ±0.5 dBu

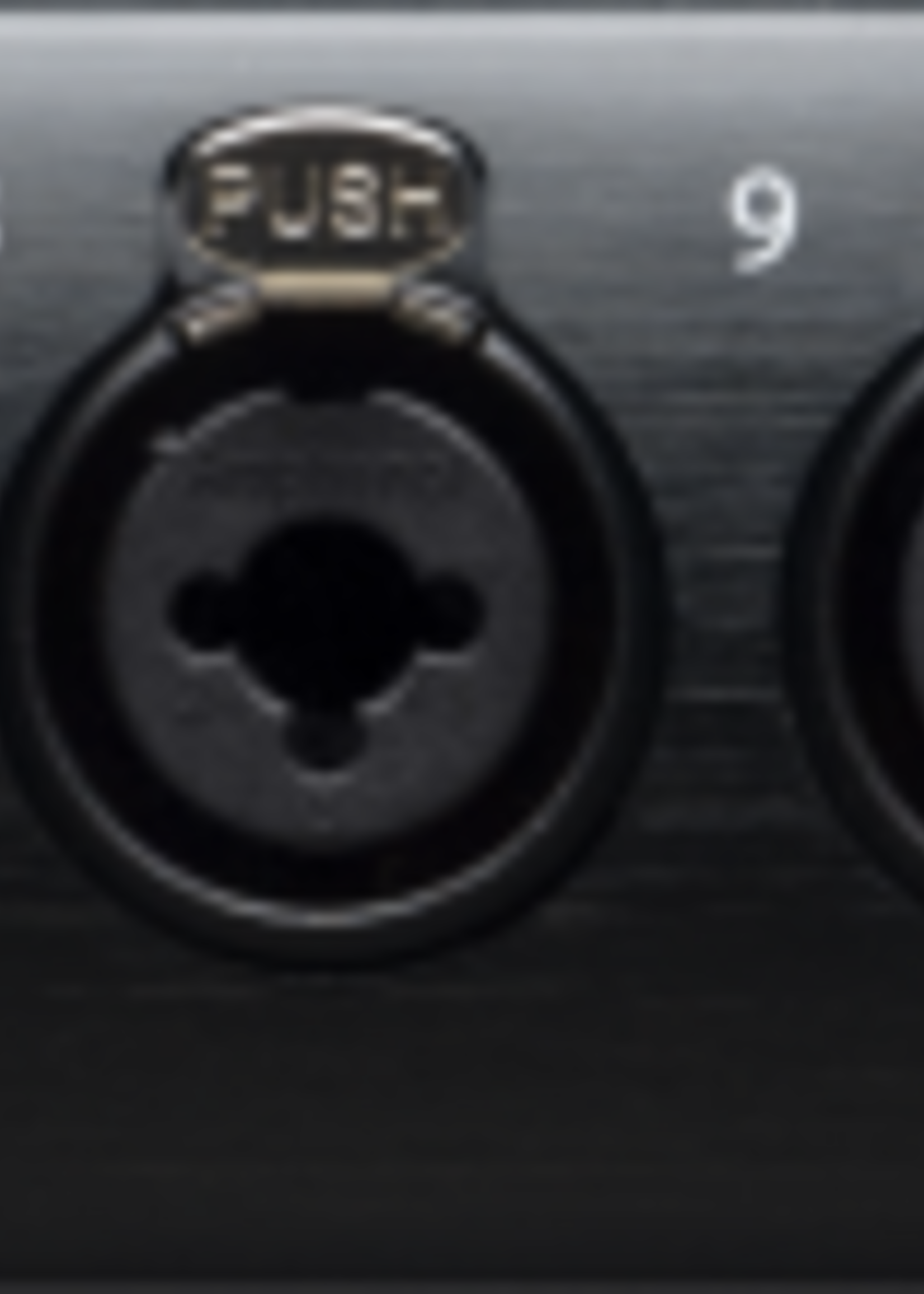

MICROPHONE INPUT CONNECTION TYPE

Combo Locking XLR Mic - 1/4” TRS Line

MICROPHONE PREAMP COMMON MODE REJECTION RATIO

65 dB (1 kHz at Unity Gain)

MICROPHONE PREAMP FREQUENCY RESPONSE

20-20 kHz (±0.5 dBu at Unity Gain)

MICROPHONE PREAMP GAIN CONTROL RANGE

0 dB to +60 dB (±1 dB)

MICROPHONE PREAMP INPUT IMPEDANCE

1 kΩ

MICROPHONE PREAMP MAXIMUM INPUT LEVEL

=+12 dBu (Unity Gain)

MICROPHONE PREAMP SIGNAL TO NOISE RATIO

94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

MICROPHONE PREAMP TOTAL HARMONIC DISTORTION

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Outputs

HEADPHONE OUTPUTS FREQUENCY RESPONSE

20 Hz to 20 kHz, +/-0.5 dB

HEADPHONE OUTPUTS MAXIMUM OUTPUT

100 mW/ch. @ 60Ω Load

HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO

96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION

0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

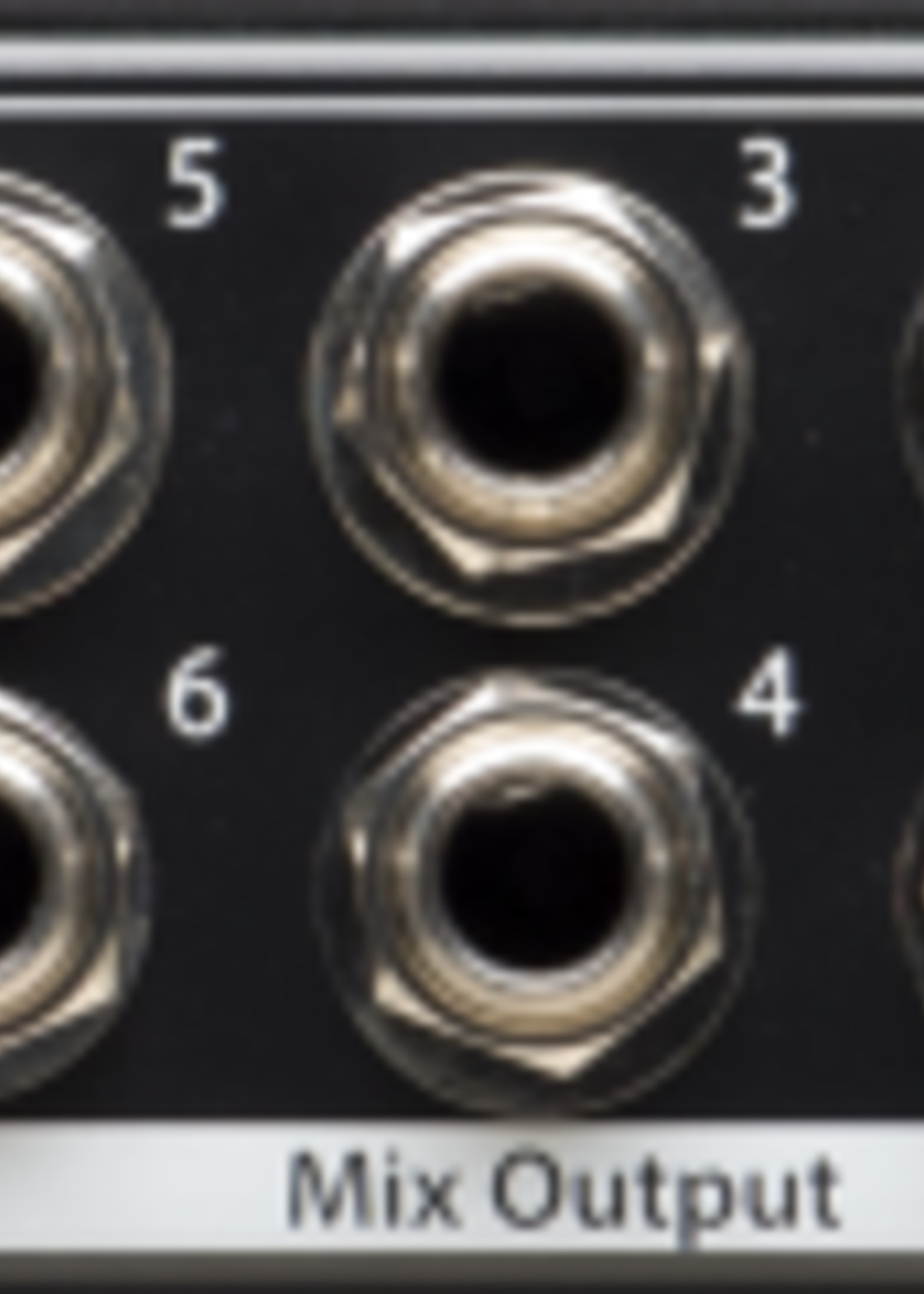

LINE OUTPUTS CONNECTION TYPE

1/4" TRS, Balanced

LINE OUTPUTS MAXIMUM OUTPUT LEVEL

=+18 dBu, ±0.5 dBu

LINE OUTPUTS OUTPUT IMPEDANCE

100 Ohms
