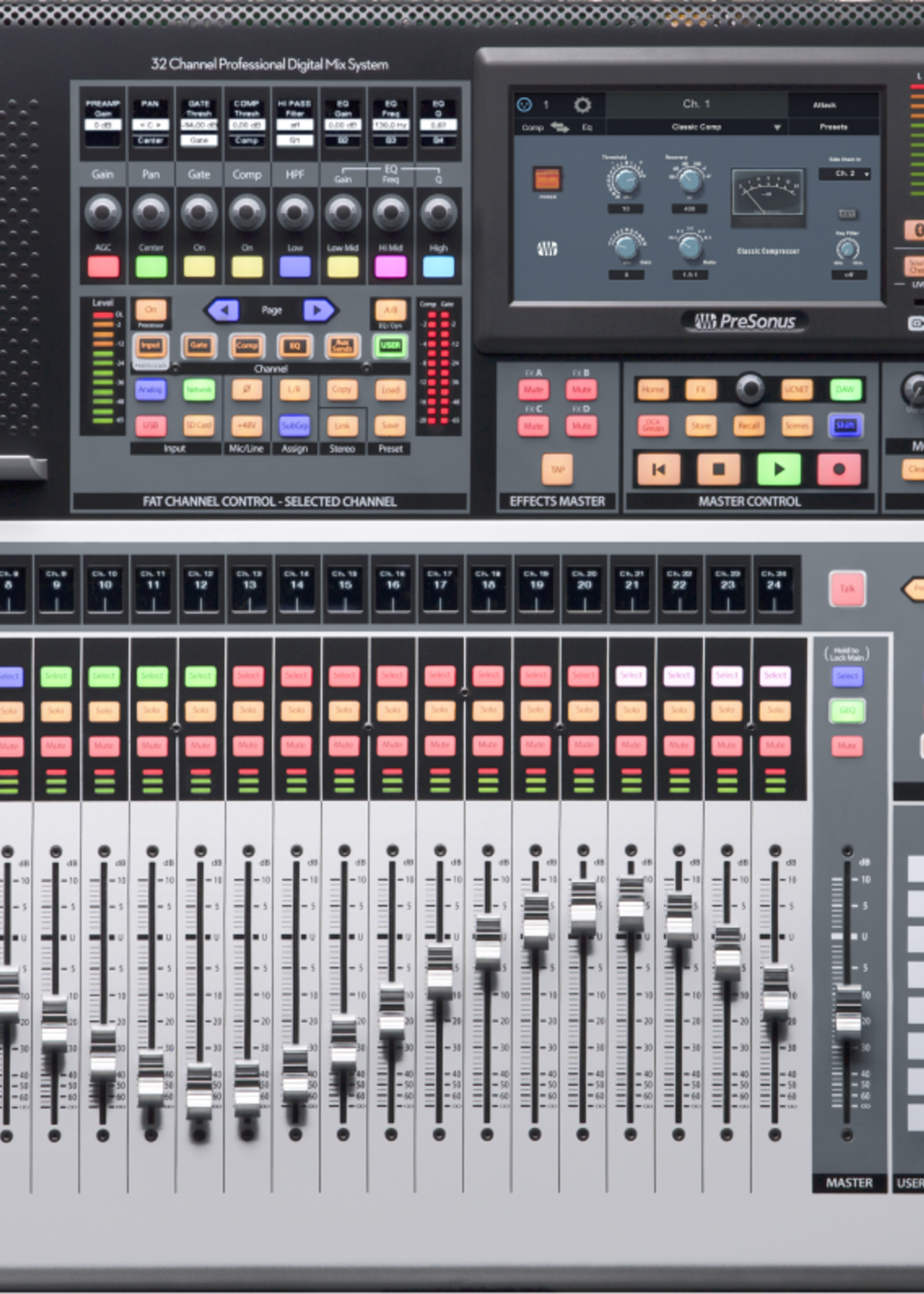

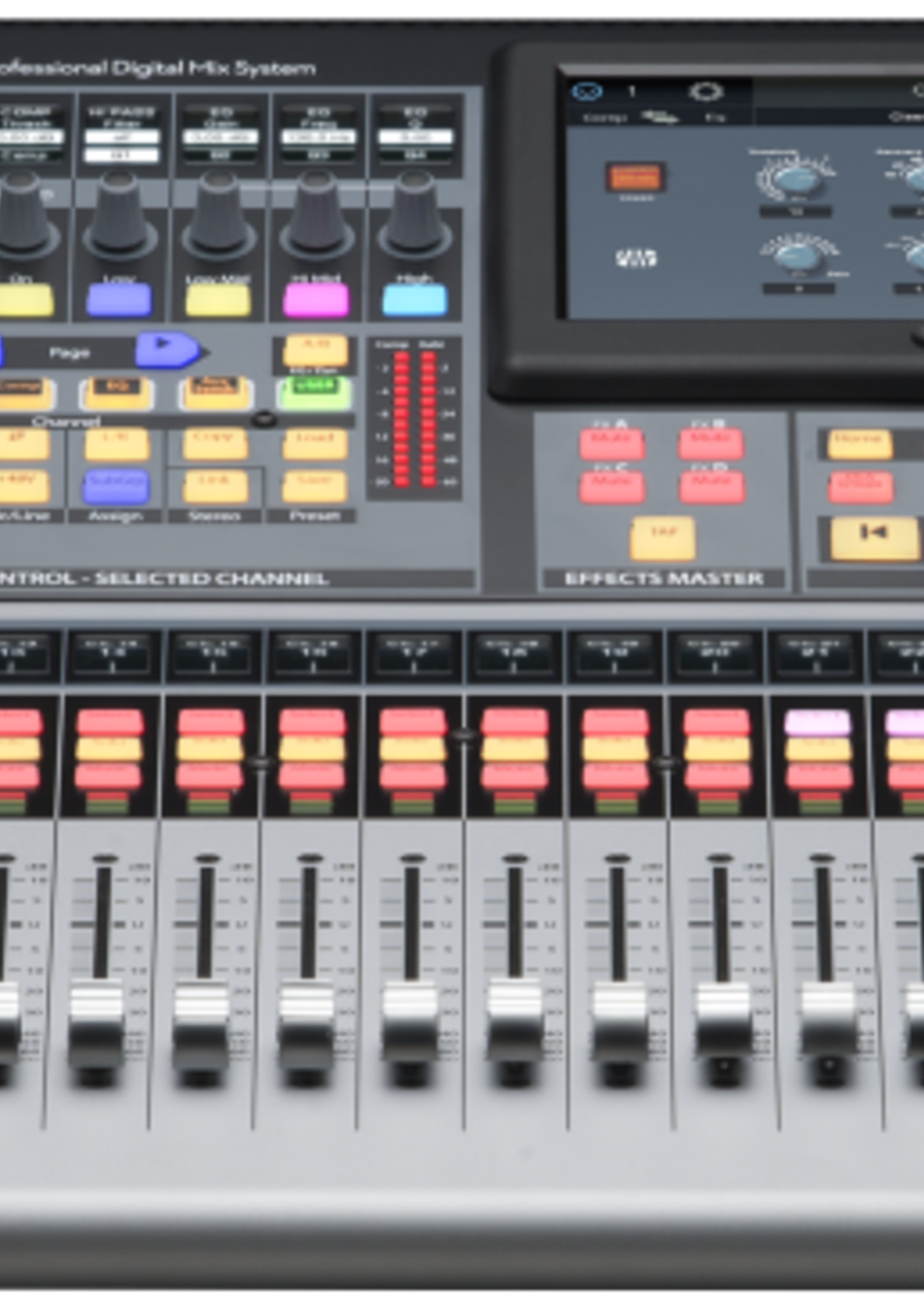

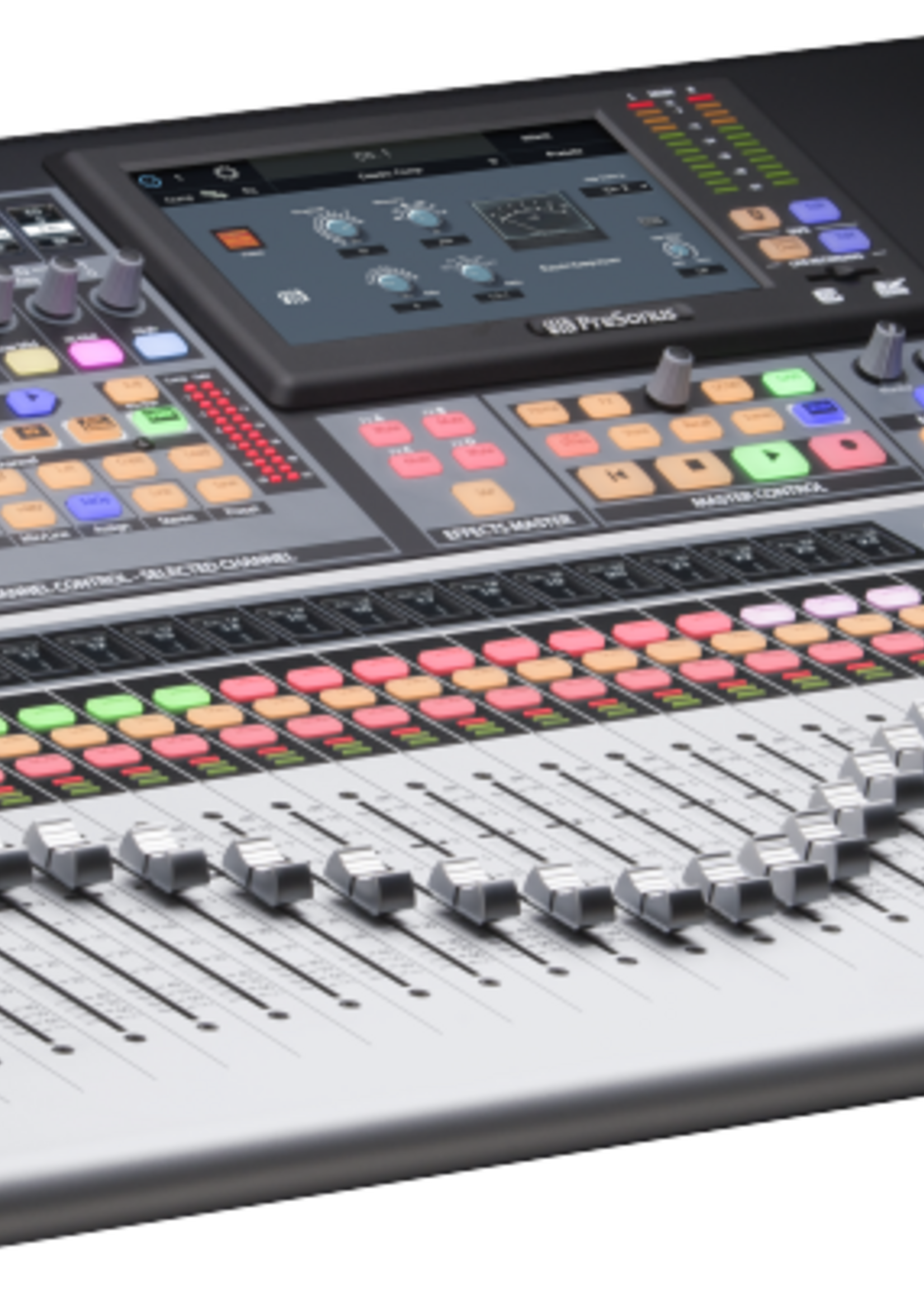

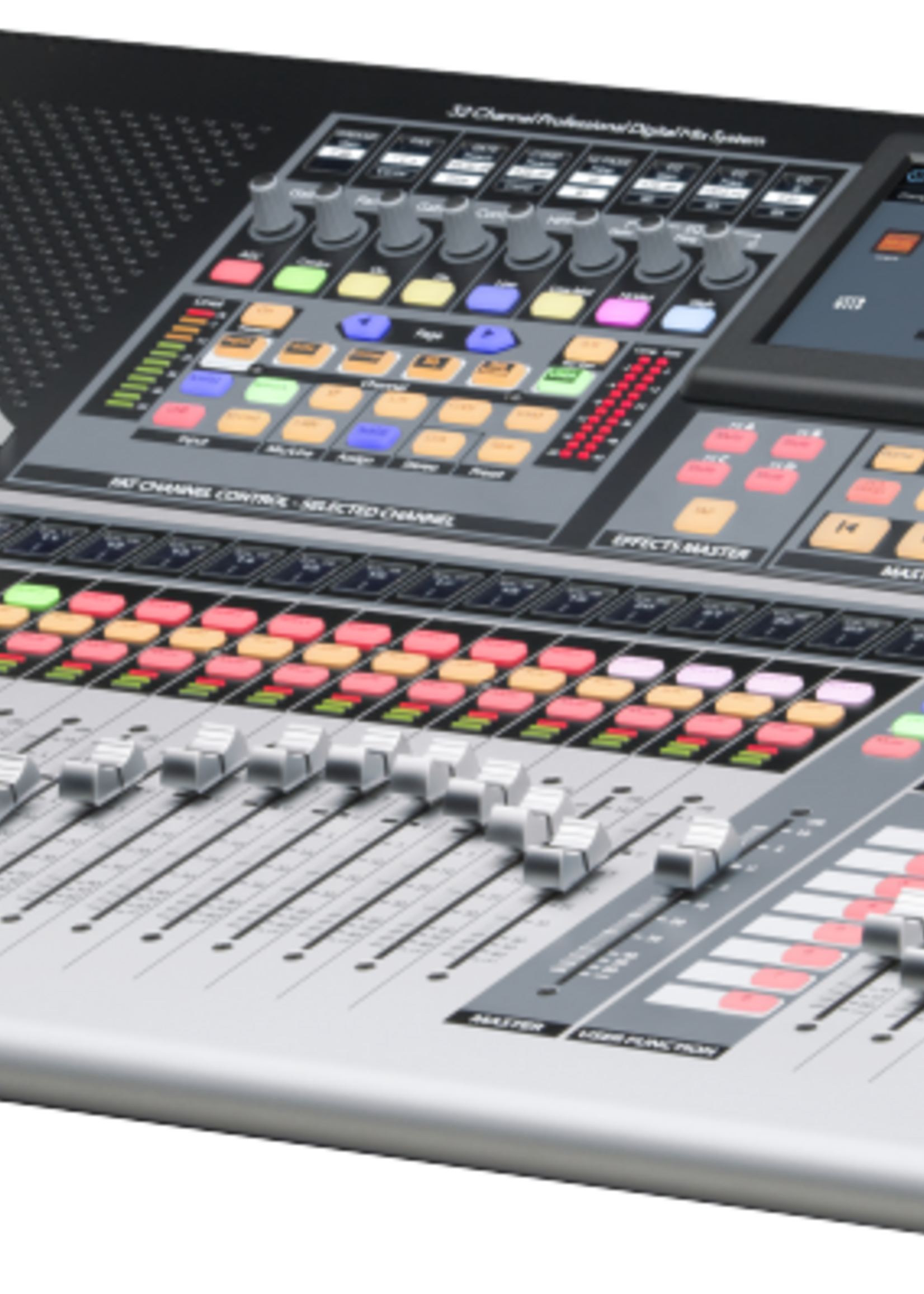

A 32-channel powerhouse with one-to-one channel control the StudioLive 32S is a small-format digital mixer with large-format mixing power.
De beoordeling van dit product is 0 van de 5
(0)
Op voorraad
(Levertijd:(Magazijn): Dit artikel wordt doorgaans binnen 7-14 werkdagen verzonden! Neem voor meer informatie contact met ons op via e-mail: [email protected])
FEATURES
Portable, and flexible digital console for installed sound, mobile applications, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
Fully recallable, 40-input, 32-channel digital mixing console
Built-in AVB networking creates a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
Onboard multitrack SD Card recorder with true Virtual Soundcheck
16 FlexMixes (aux mixes, subgroups, or matrix mixes)
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture.
Performance
24
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
+18 dBu
Electronics
1/4" TRS Active Stereo
220-240V EU
85W (Continuous)
48 VDC, Switchable Per Channel (±2 VDC)
Inputs
1/4" TRS Female, Balanced
20-20 kHz (±0.5 dBu at Unity Gain)
10 kΩ
=+18 dBu
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
XLR Female, Balanced
65 dB (1 kHz at Unity Gain)
20-20 kHz (±0.5 dBu at Unity Gain)
0 dB to +60 dB (±1 dB)
1 kΩ
=+12 dBu (Unity Gain)
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
