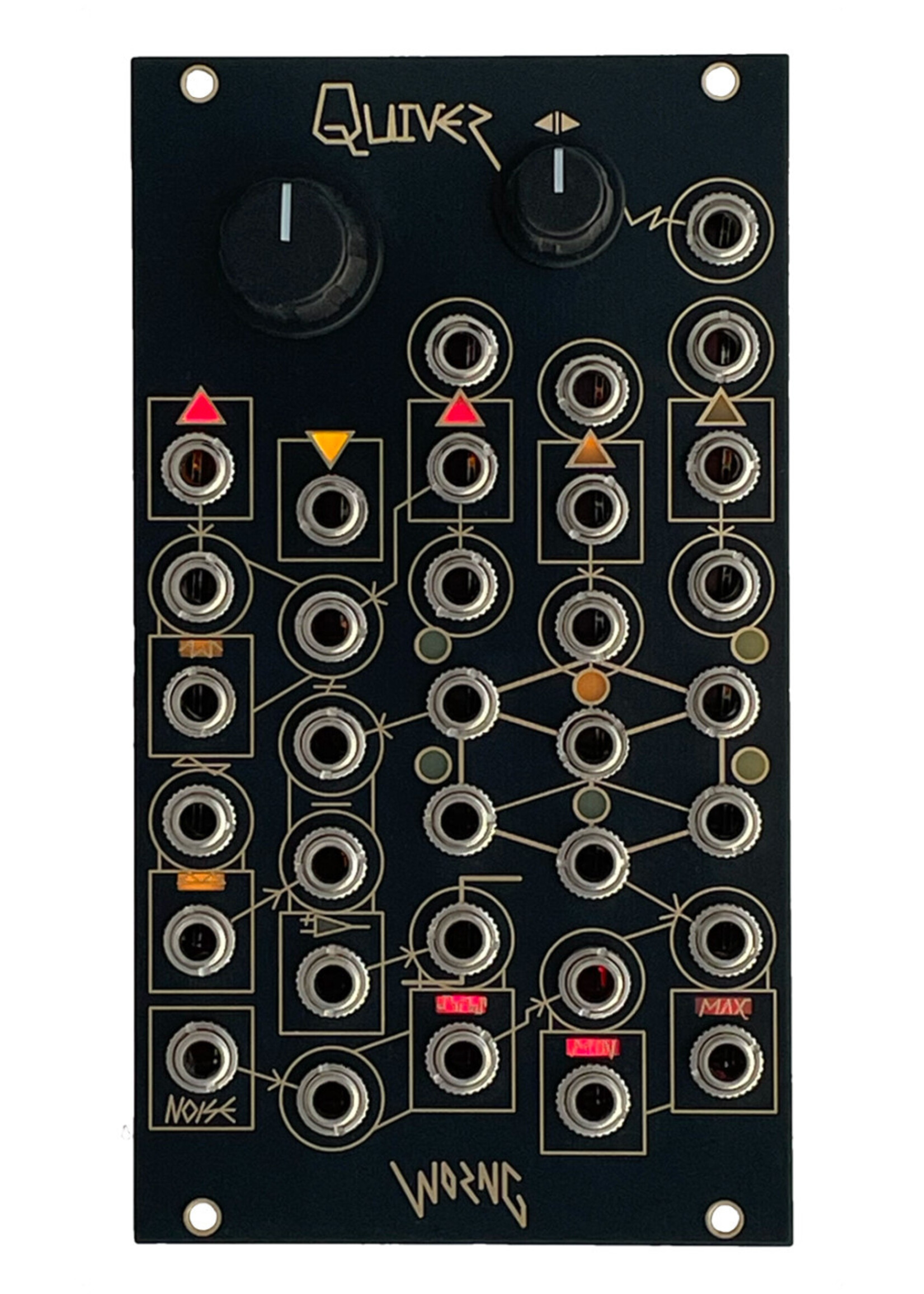

Worng Electronics Quiver: The Swiss Army Knife of Analogue Modulation

Quiver is a 100% analogue, patch-programmable modulation powerhouse designed to be the beating heart of your modular system. It packs four triangle-core LFOs—governed by a master "Leader" macro control—alongside a curated selection of essential utilities including a wavefolder, rectifier, and sample & hold. At its core lies a 3-input/6-output "Modulation Cube" derived from the acclaimed Vector Space circuitry, which calculates interrelated voltages for organic, non-repeating movement. With clever internal normalisation, Quiver provides 18 simultaneous modulation sources out of the box, making it the ultimate tool for expanding any modular or semi-modular setup.

Key Features:

• Quad Analogue LFOs: Featuring a global macro rate control and individual CV inputs for complex cross-modulation.

• Modulation Cube Matrix: Generates six unique, interrelated CV streams based on analogue computation.

• Full Utility Toolkit: Includes an integrated wavefolder, full-wave rectifier, noise source, and voltage comparator.

• Dynamic Sample & Hold: Essential for stepped random voltages and rhythmic "humanizing" effects.

• Visual Interface: Each output is equipped with a dedicated LED, providing real-time feedback of voltage activity.

Technical Specifications:

• Width: 14HP

• Depth: 30mm

• Power Draw: +12V: 75mA, -12V: 75mA
