Worng Electronics LRMSMSLR: Unlock Professional Stereo Control

The LRMSMSLR is a precision 4HP tool that introduces professional mid/side processing to your Eurorack rig. It functions as both an encoder (LR to MS) and a decoder (MS to LR), effectively creating a send-and-return loop for the center and stereo-edge components of your sound. This allows for advanced techniques like filtering the sides of a reverb for clarity or adding distortion only to the mono "mid" signal for extra punch. Because the module is fully DC-coupled, it doubles as a powerful CV utility, capable of deriving sum and difference voltages from simple envelopes and LFOs to create intricate, evolving modulation.

Key Features:

• Dual Encoder/Decoder: A complete M/S processing hub in a space-saving 4HP footprint.

• Half-Normalled Inputs: Passes audio straight through until you patch into the M/S chain, allowing for instant A/B comparisons.

• Spatial Sound Design: Independently process the stereo width of your patches using any external mono module.

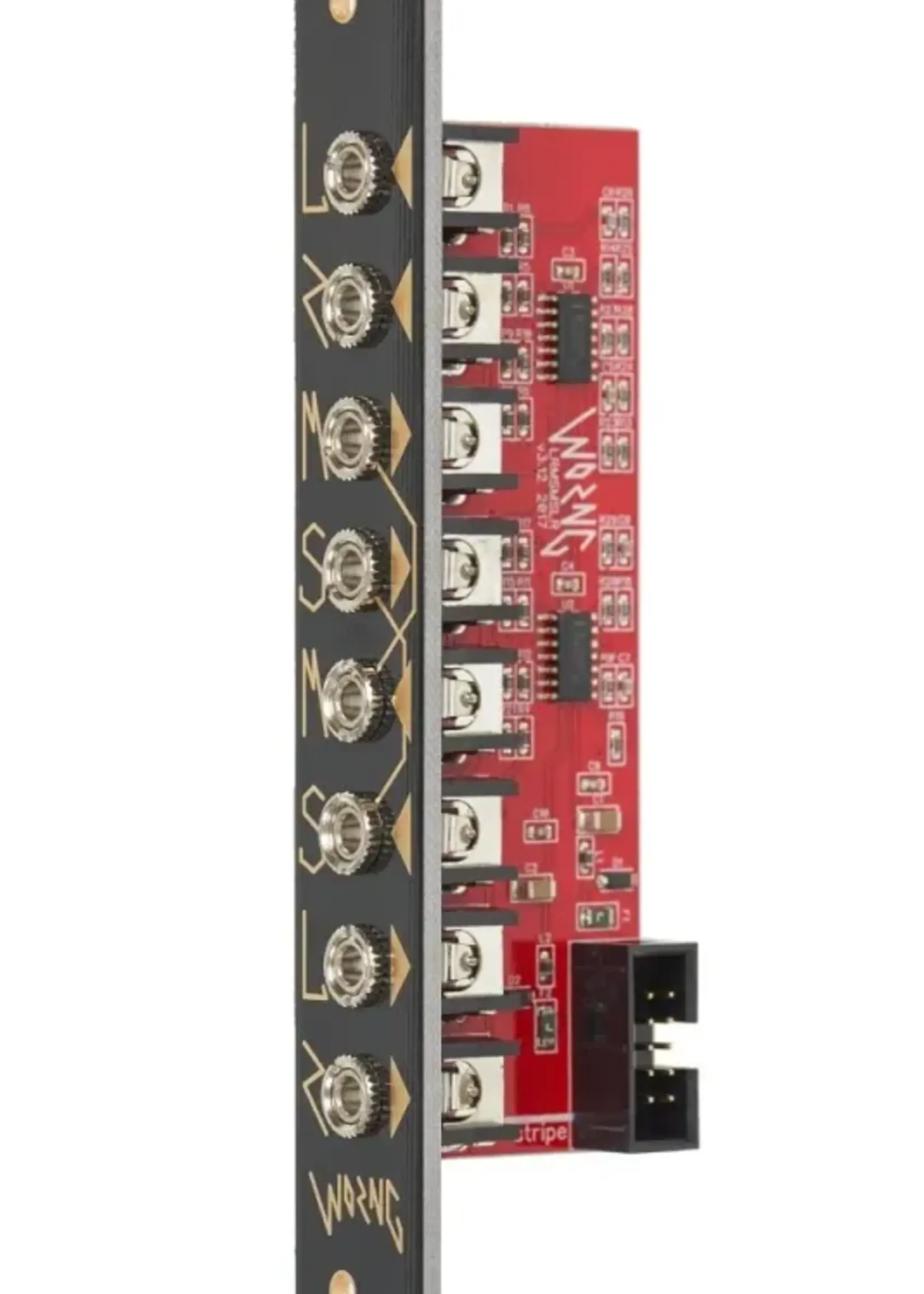

• Boutique Audio Quality: Features low-noise OPA opamps to ensure transparency and studio-grade performance.

• DC-Coupled Flexibility: Equally effective at transforming audio signals and control voltages.

Technical Specifications:

• Width: 4HP

• Depth: 37mm

• Power Draw: +12V: 15mA, -12V: 15mA
