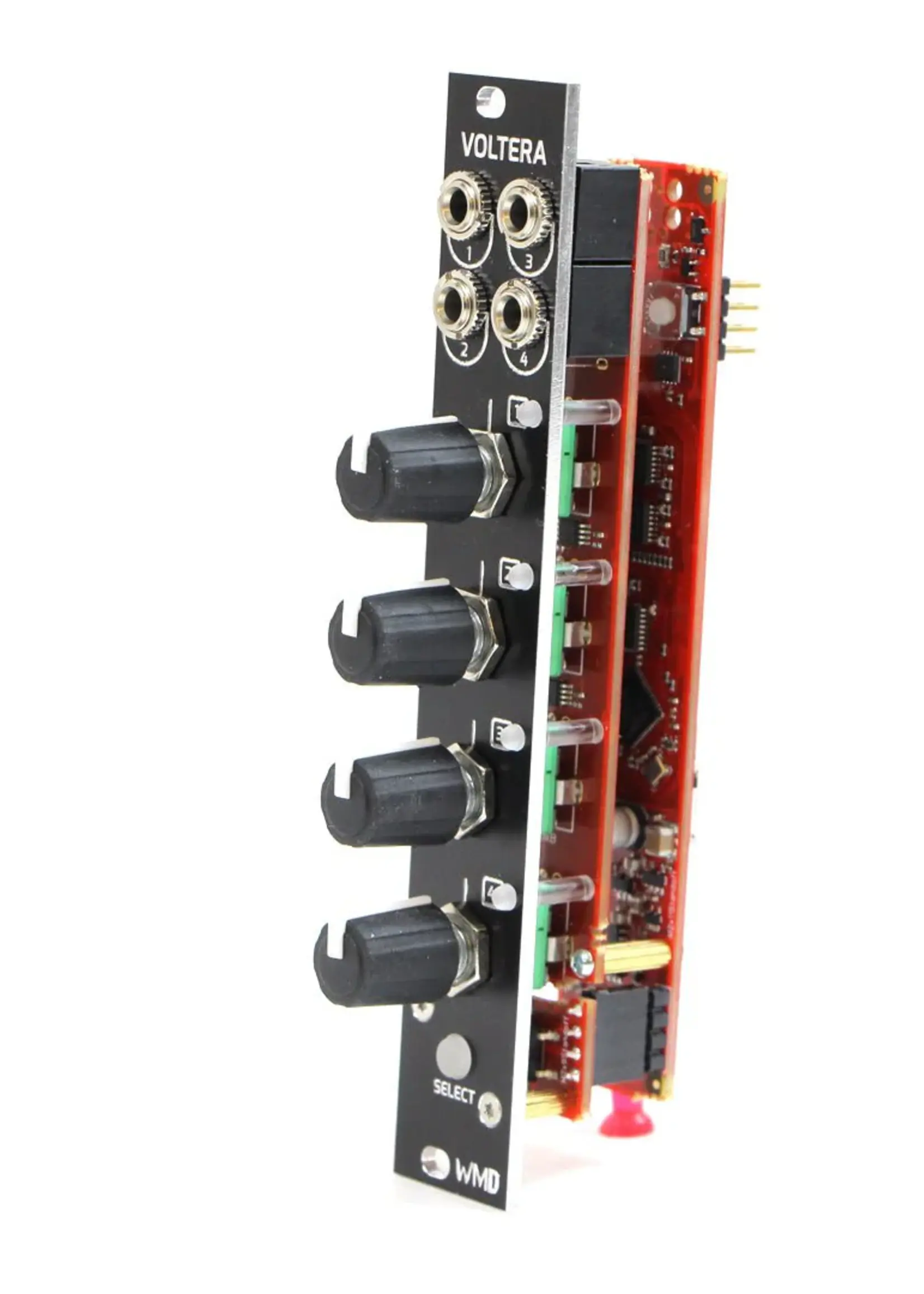

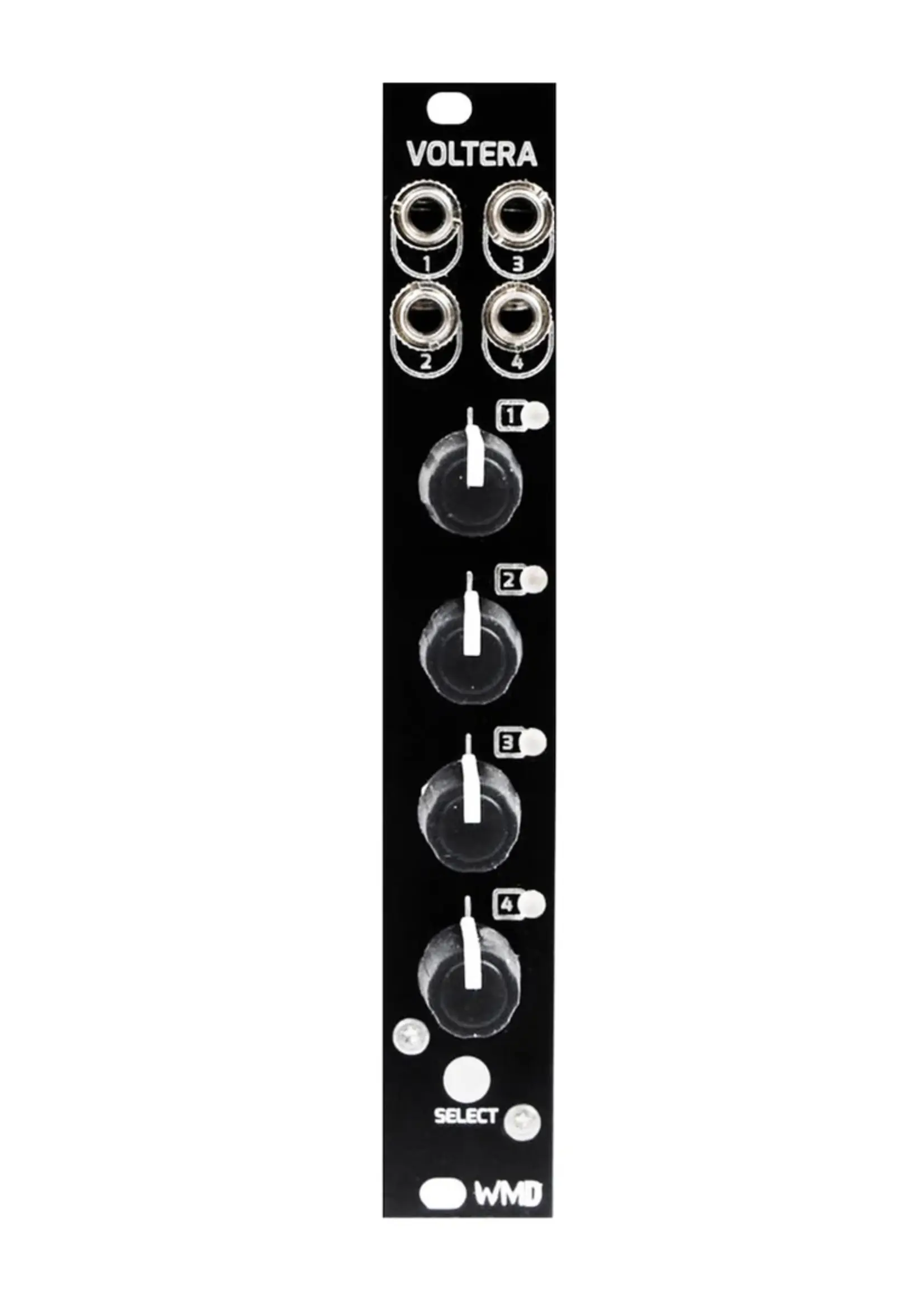

WMD VOLTERA: The High-Precision CV Expansion for METRON

The WMD VOLTERA is a 4-channel CV sequencer designed specifically to expand the capabilities of the WMD METRON. While METRON excels at rhythmic triggers and gates, VOLTERA adds the dimension of melody and tonal control. Each channel of the VOLTERA can output independent control voltages that are directly linked to the steps of your METRON sequencer. Whether you need to program accurate 1V/Oct melodies, modulate filters, or scan complex wavetables, VOLTERA transforms your trigger sequencer into a comprehensive compositional powerhouse.

Key Features:

• Four Independent CV Channels: Adds four fully assignable voltage outputs per expansion module.

• Seamless Metron Integration: Controlled directly through the METRON interface for an intuitive, unified workflow.

• High-Resolution Output: Features precision 16-bit DACs for stable oscillator tuning and smooth modulation.

• Selectable Voltage Ranges: Configurable ranges (0-10V, -5V to +5V, etc.) to suit any modular destination.

• Scalable Architecture: Chain multiple VOLTERA modules to a single METRON to build a massive multi-channel CV sequencing rig.

Technical Specifications:

• Width: 4HP

• Depth: 45mm

• Power Draw: +12V: 60mA, -12V: 15mA

• Outputs: 4x Precision CV Outs

• Compatibility: Requires WMD METRON host (connects via internal expansion cable)
