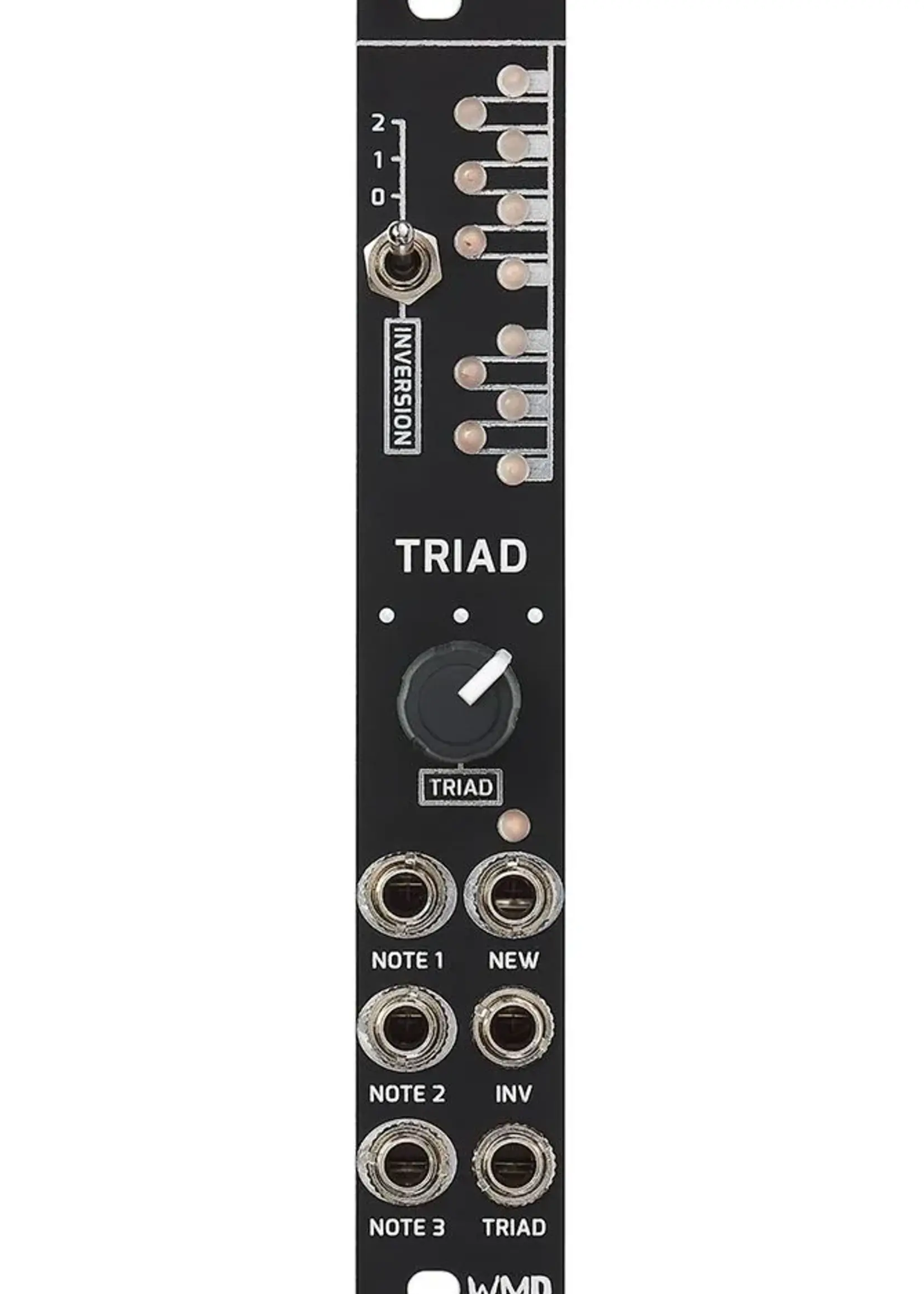

WMD Triad: Polyphonic Harmony for the Arpitecht

The WMD Triad is a dedicated expansion module that transforms the Arpitecht from a monophonic arpeggiator into a powerful polyphonic harmony system. By adding the Triad, you gain three additional 1V/Oct CV outputs, allowing you to drive up to three extra oscillators to form full chords. The module derives its intelligence directly from the Arpitecht host, enabling you to select different inversions, voicings, and intervals manually or via CV. This makes it easy to create complex musical textures that remain perfectly in key with the scales selected on your Arpitecht.

Key Features:

• Triple CV Output Expansion: Generate up to three additional voices to complement the Arpitecht's main melody.

• Intelligent Chord Voicing: Select from a variety of chord types and intervals for rich, harmonic layers.

• Inversion Control: Dynamically change the order of notes within a chord for smoother melodic transitions.

• Total CV Integration: Modulate chord selection and spread for evolving, automated harmonic structures.

• Space-Saving Power: Delivers massive polyphonic capabilities within a slim 6HP footprint.

Technical Specifications:

• Width: 6HP

• Depth: 45mm

• Power Draw: +12V: 35mA, -12V: 15mA

• Outputs: 3x 1V/Oct CV outputs

• Compatibility: Requires WMD Arpitecht (connects via internal ribbon cable)
