WMD PM DB25 MKII: Professional Studio Integration for Your Mixer

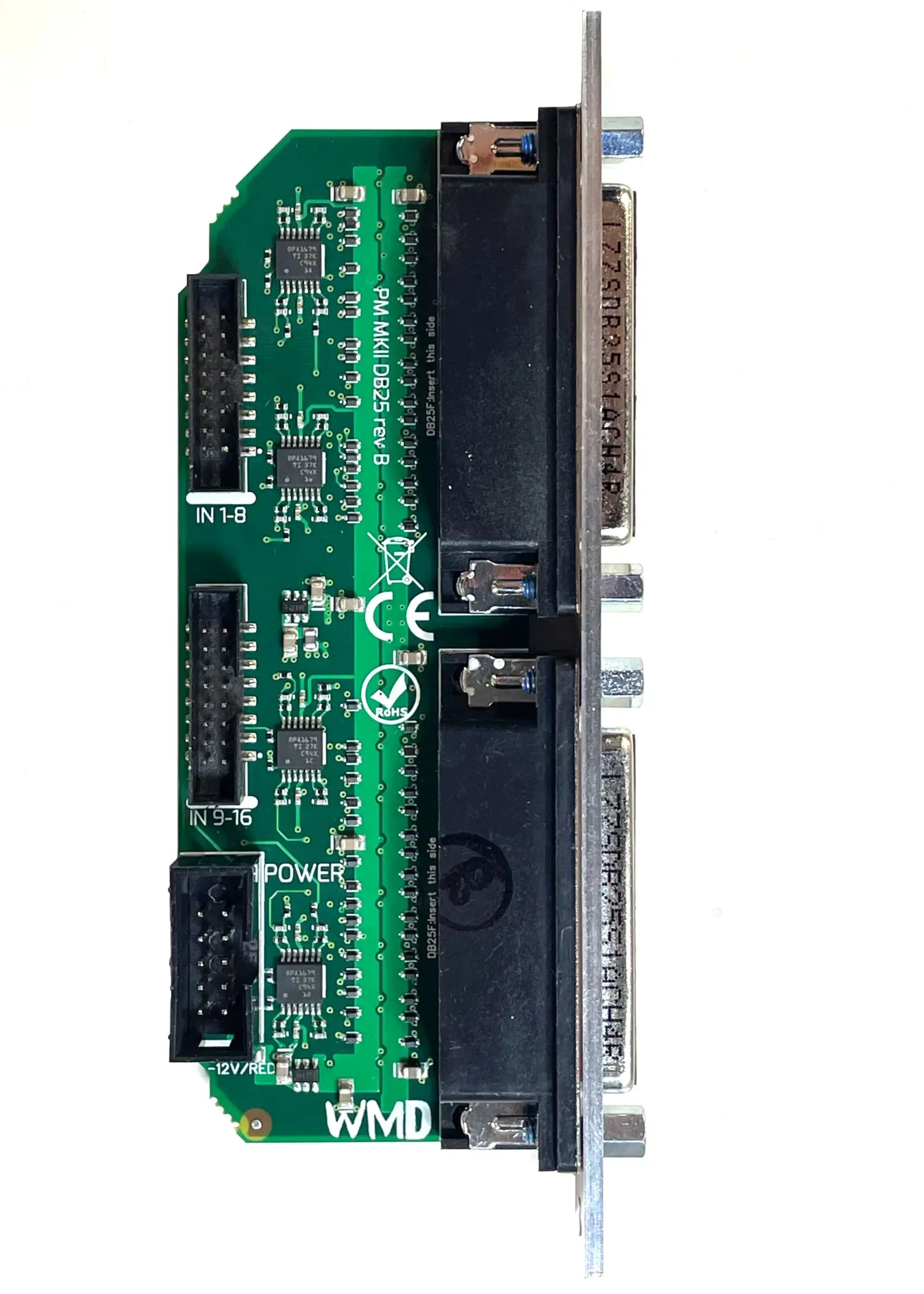

The WMD PM DB25 MKII is a dedicated expansion module designed to transform your Performance Mixer MKII into a high-end studio recording interface. Utilizing the industry-standard DB25 connector (Tascam pinout), this module provides eight balanced line-level outputs. This allows you to route every individual channel of your mixer directly to your audio interface, DAW, or outboard summing mixer. A standout feature is the selectable Pre-Fader or Post-Fader tap available via internal jumpers, giving you total flexibility to record clean tracks while simultaneously performing a live mix with fader movements.

Key Features:

• Eight Balanced Outputs: High-fidelity differential line drivers ensure noise-free signal transmission over long cable runs.

• Standard DB25 Interface: Uses the ubiquitous Tascam analog pinout for easy connectivity with pro-audio gear.





• Pre/Post Fader Versatility: Customizable output routing per channel to suit your specific recording workflow.

• Clean Signal Path: Maintains the massive headroom and low noise floor of the Performance Mixer MKII.

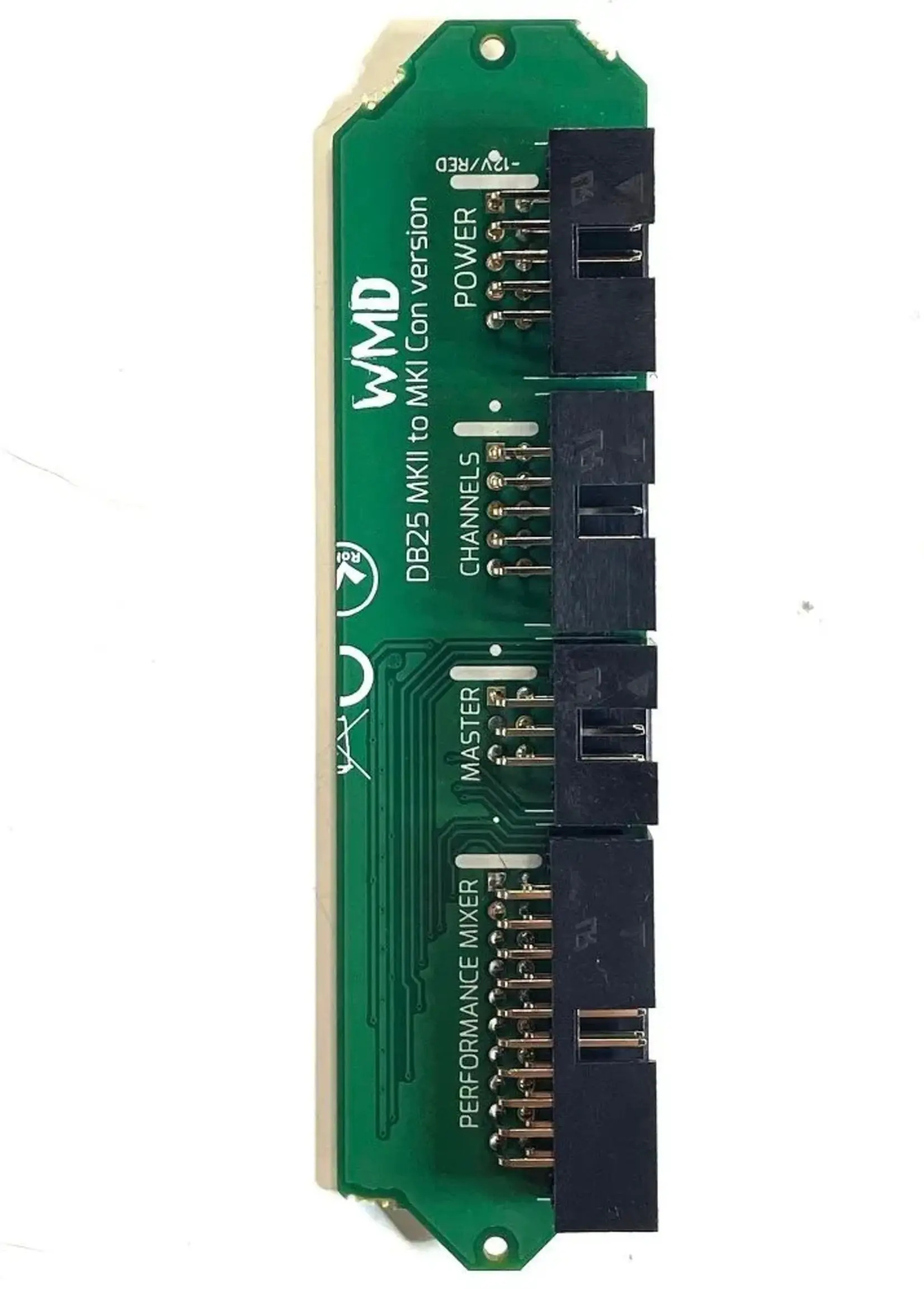

• Seamless Connectivity: Connects internally to the PM MKII host module, keeping your front panel free of cable clutter.

Technical Specifications:

• Width: 6HP

• Depth: 45mm

• Power Draw: +12V: 70mA, -12V: 70mA

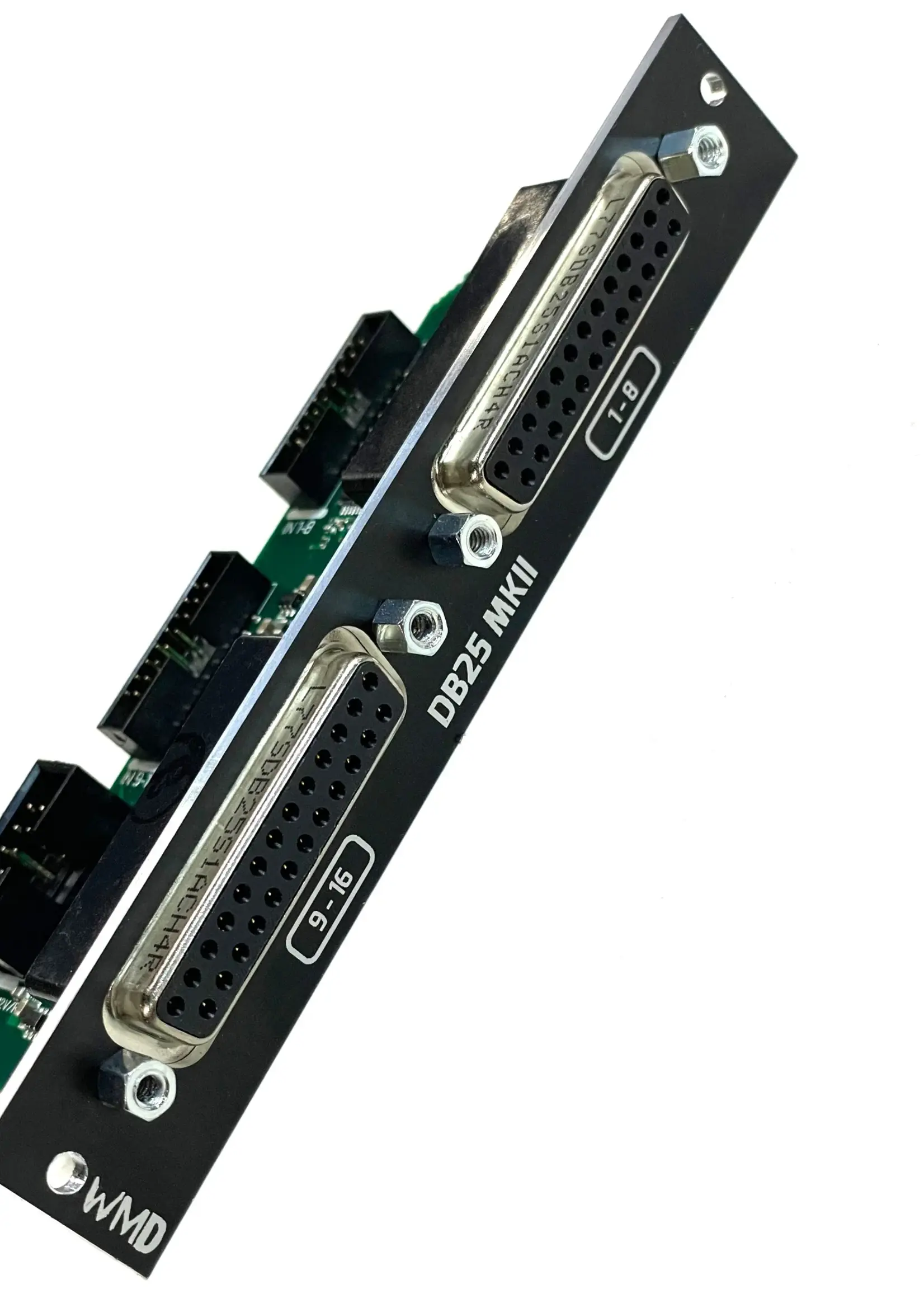

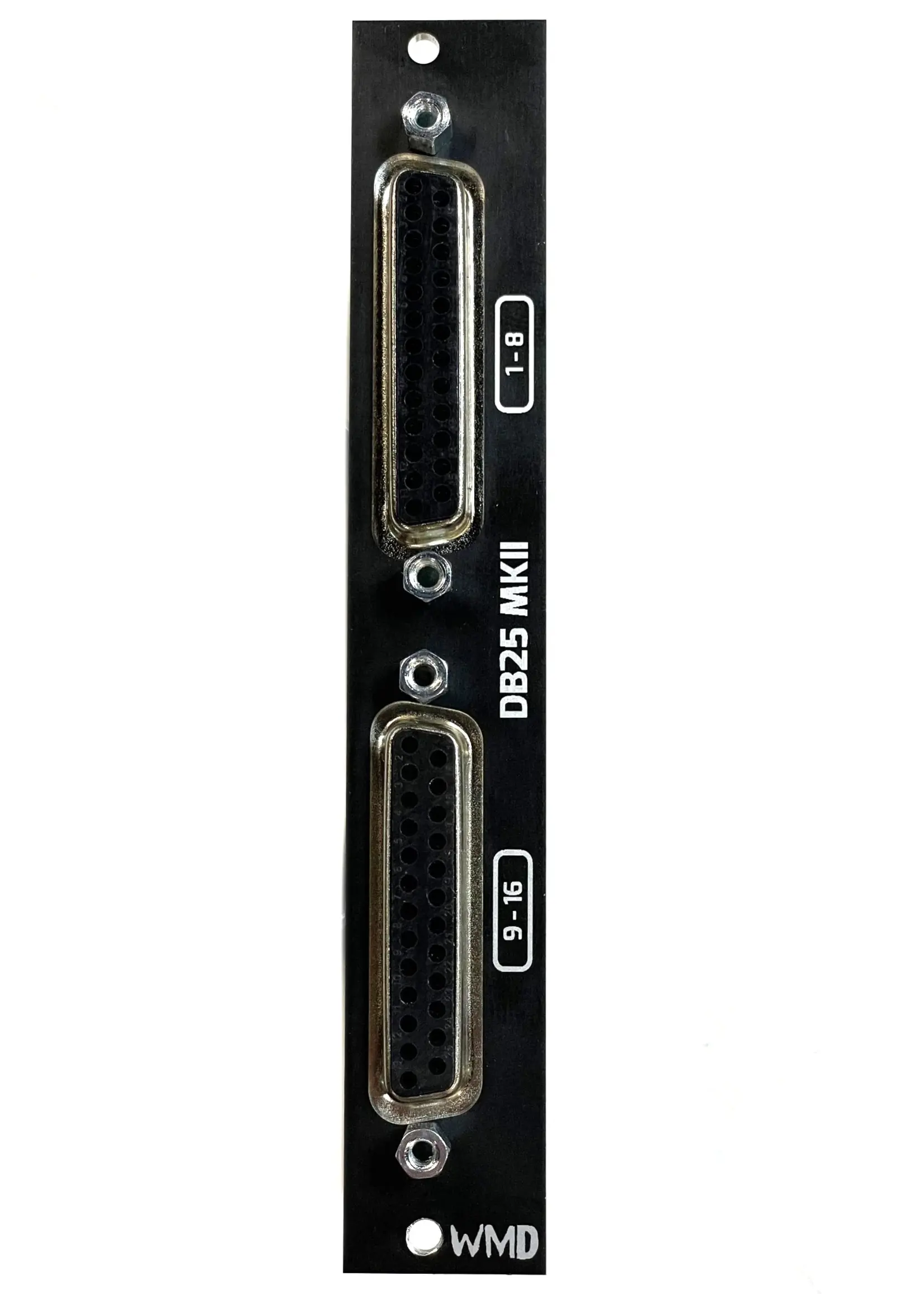

• Connector: 1x DB25 (Female)

• Compatibility: Designed specifically for the WMD Performance Mixer MKII
