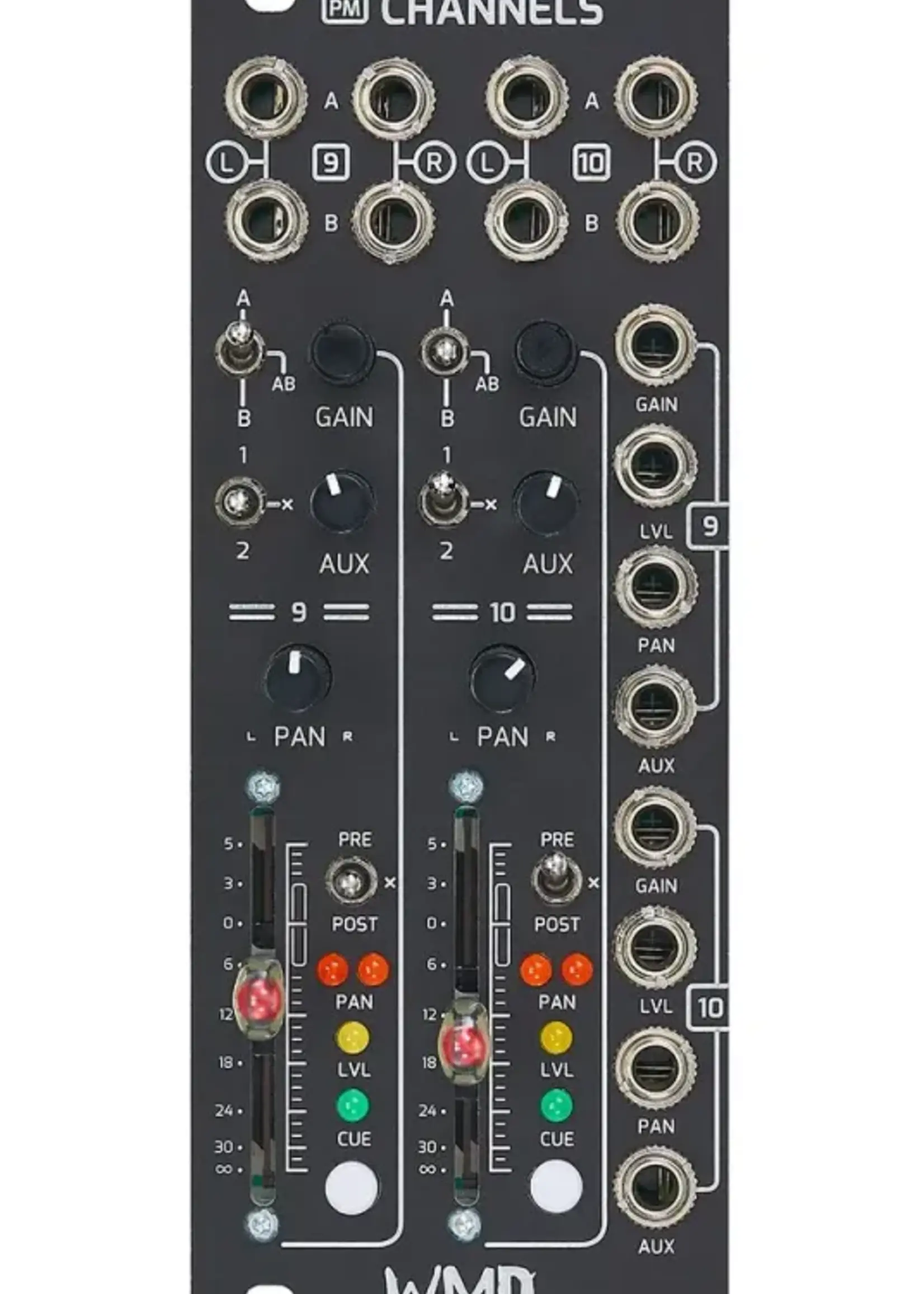

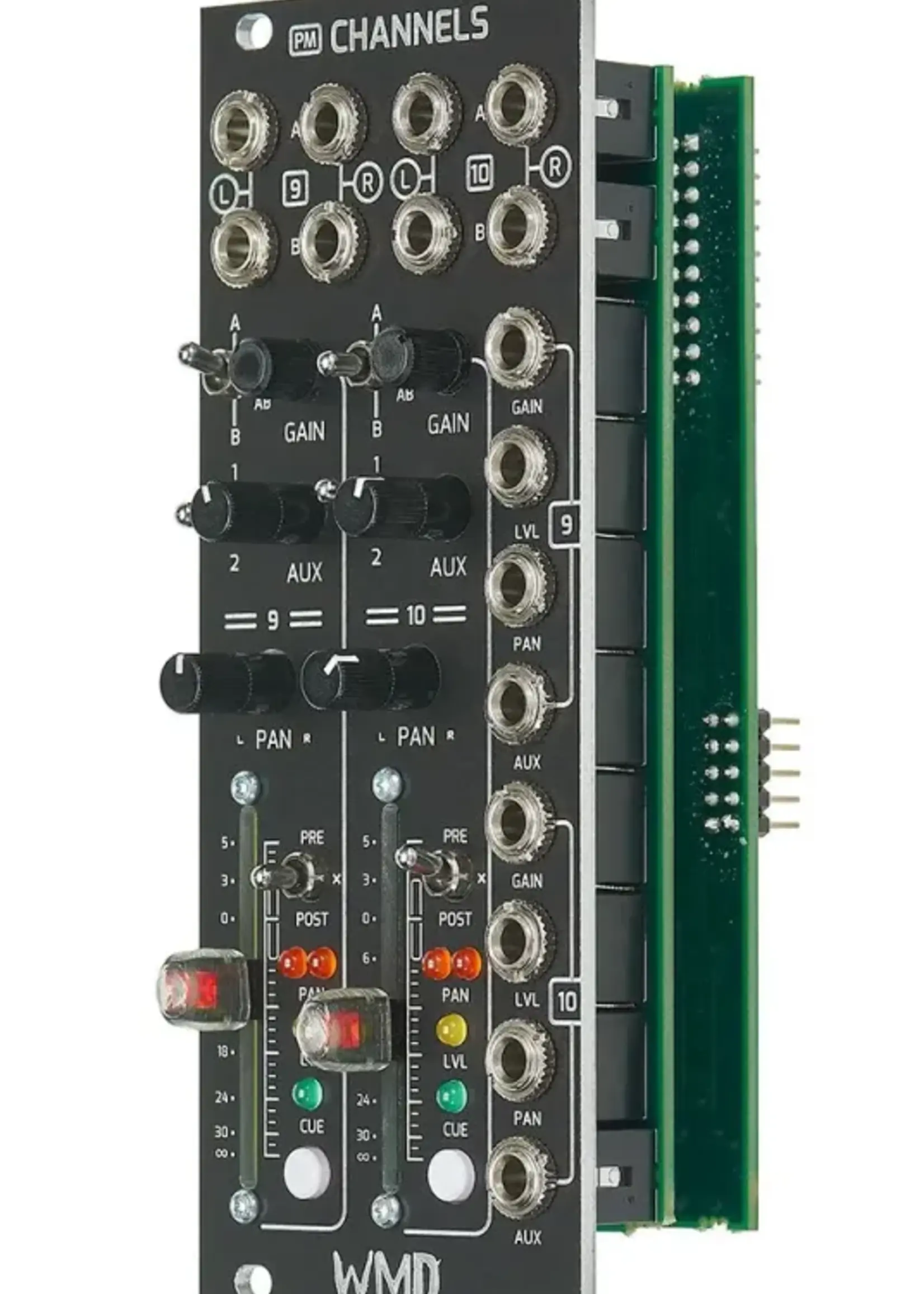

WMD PM Channels Expand: Scale Your Mixing Potential

The WMD PM Channels Expand is the essential expansion module for the WMD Performance Mixer. This module allows you to effortlessly add two extra, fully-featured stereo input channels to your mixing environment. Identical in functionality to the channels on the main unit, the Expand module provides complete CV control over gain, panoramic positioning, and aux send levels. Whether you are looking to integrate more instruments or manage complex effects returns, this module provides seamless integration while maintaining the high sonic standards of your modular rig.

Key Features:

• Additional Inputs: Adds two high-headroom stereo input channels to the Performance Mixer system.

• Comprehensive CV Control: Automate gain, pan, and aux levels using external modulation for evolving performances.

• Stereo/Mono Compatibility: Supports full stereo signals or dual mono sources per channel.

• Seamless Integration: Connects directly to the main Performance Mixer unit via the included expansion cable.

• Pristine Signal Path: Utilizes the same low-noise, professional-grade circuitry as the primary mixer.

Technical Specifications:

• Width: 10HP

• Depth: 45mm

• Power Draw: +12V: 70mA, -12V: 70mA (draws power via the main mixer connection)

• Inputs: Stereo L/R per channel, CV inputs for all primary parameters

• Requirement: Requires a WMD Performance Mixer for operation
