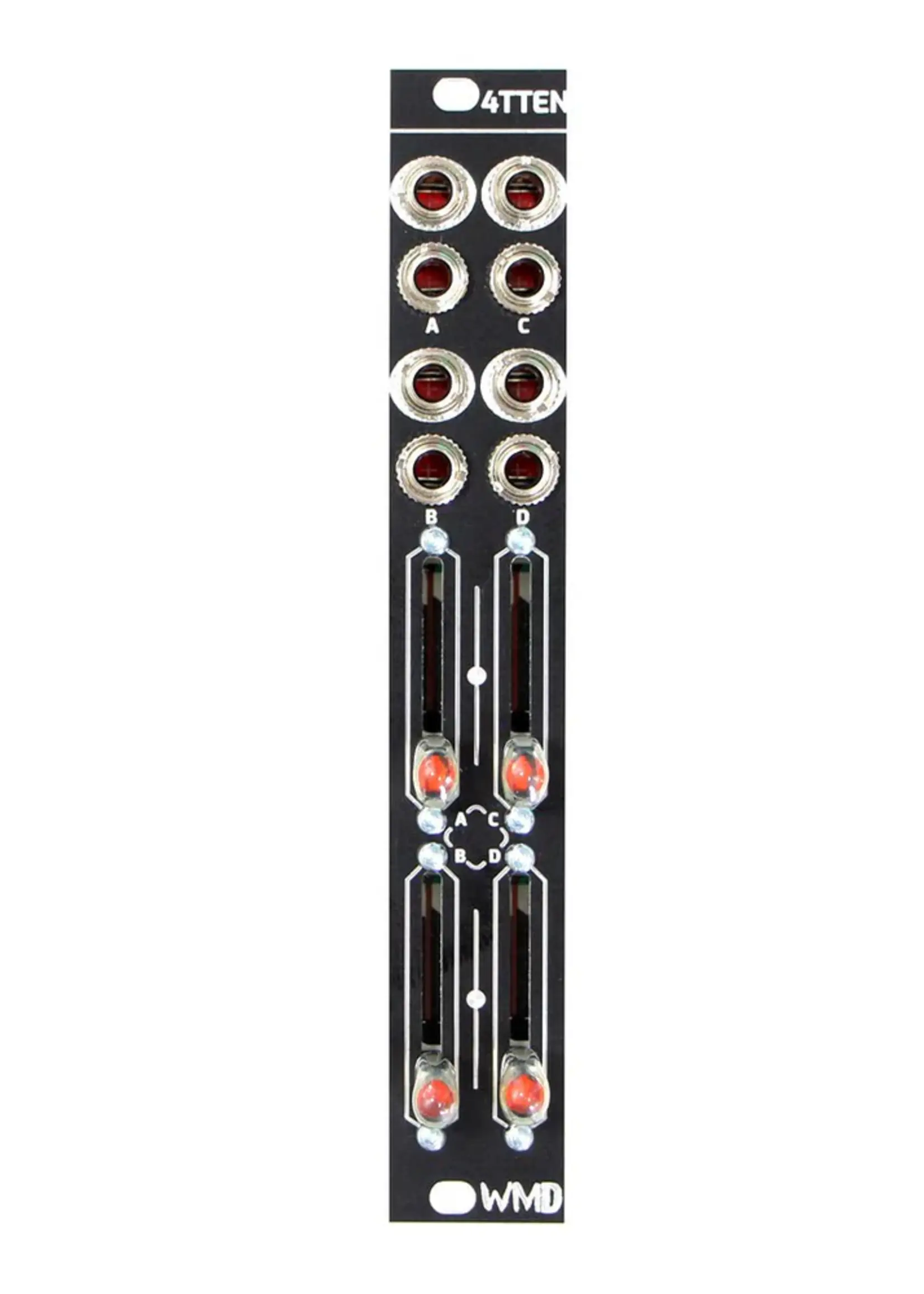

WMD 4TTEN: High-Visibility Quad Attenuation

The WMD 4TTEN is a performance-focused utility module that packs four channels of attenuation and offset into a slim 4HP. By utilizing sliders instead of traditional potentiometers, the 4TTEN provides immediate visual confirmation of your signal levels—a massive advantage during complex live sets. Each channel is independent and features a +5V normalled input; this means that with nothing patched into the input, the slider acts as a manual voltage source (0-5V). Whether you need to tame a hot signal or add manual macro control to a filter, the 4TTEN is a versatile and ergonomic solution.

Key Features:

• Quad Independent Attenuators: Transparent handling of both audio and control voltages.

• Performance Sliders: Tactile faders with LED indicators for precise level monitoring.

• Stand-alone Offset Generator: Provides 0 to +5V range when inputs are unpatched.

• Premium Build: Equipped with the same comfortable fader caps found on the flagship Performance Mixer.

• High Efficiency: Extremely low power draw (5mA) and virtually no voltage drop on 1V/Oct signals.

Technical Specifications:

• Width: 4HP.

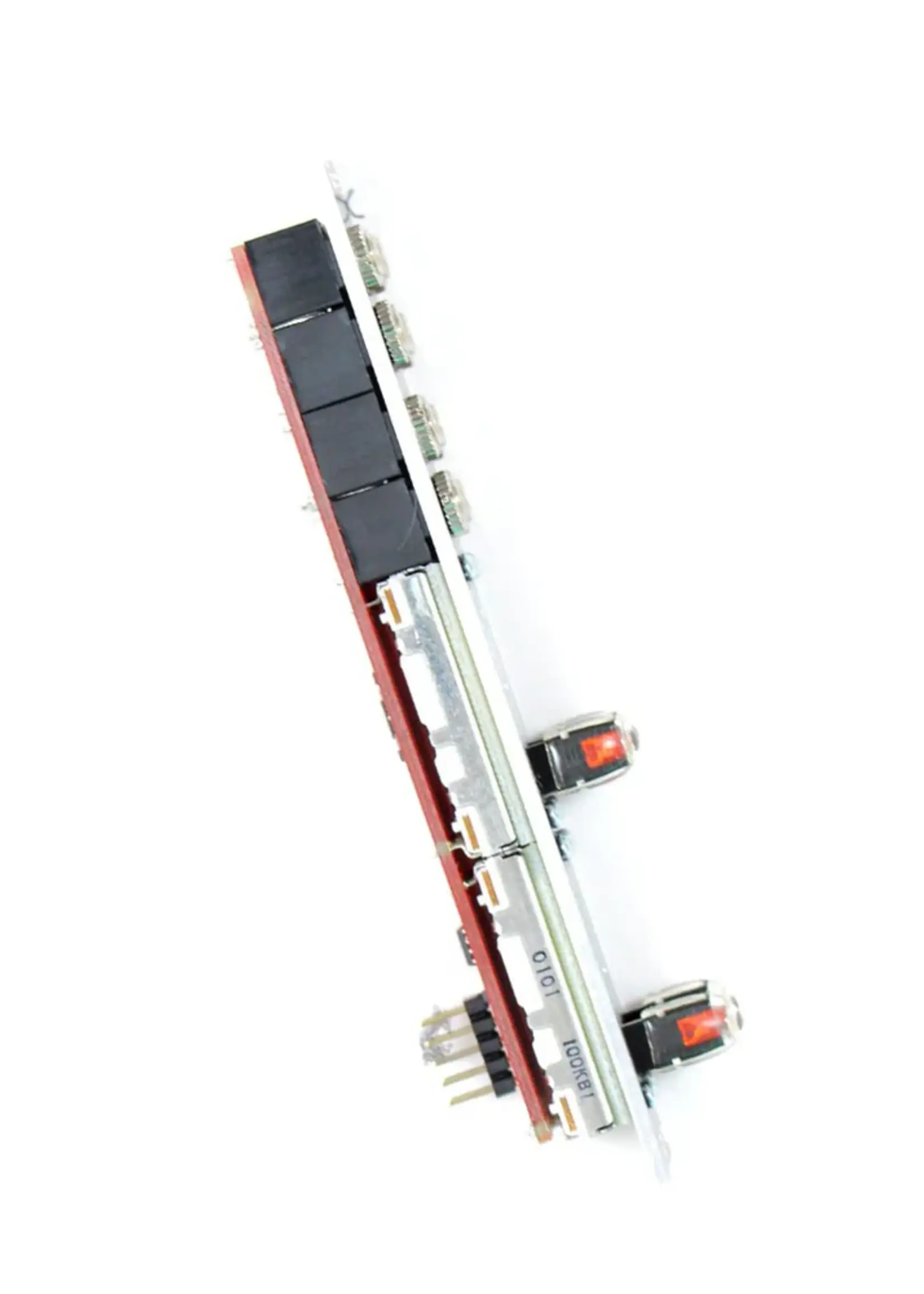

• Depth: 30mm.

• PCB Height: 113mm (Note: This is a tight fit for cases like Tiptop Audio Z-Rails).

• Current Draw: +5mA (+12V), -5mA (-12V).
