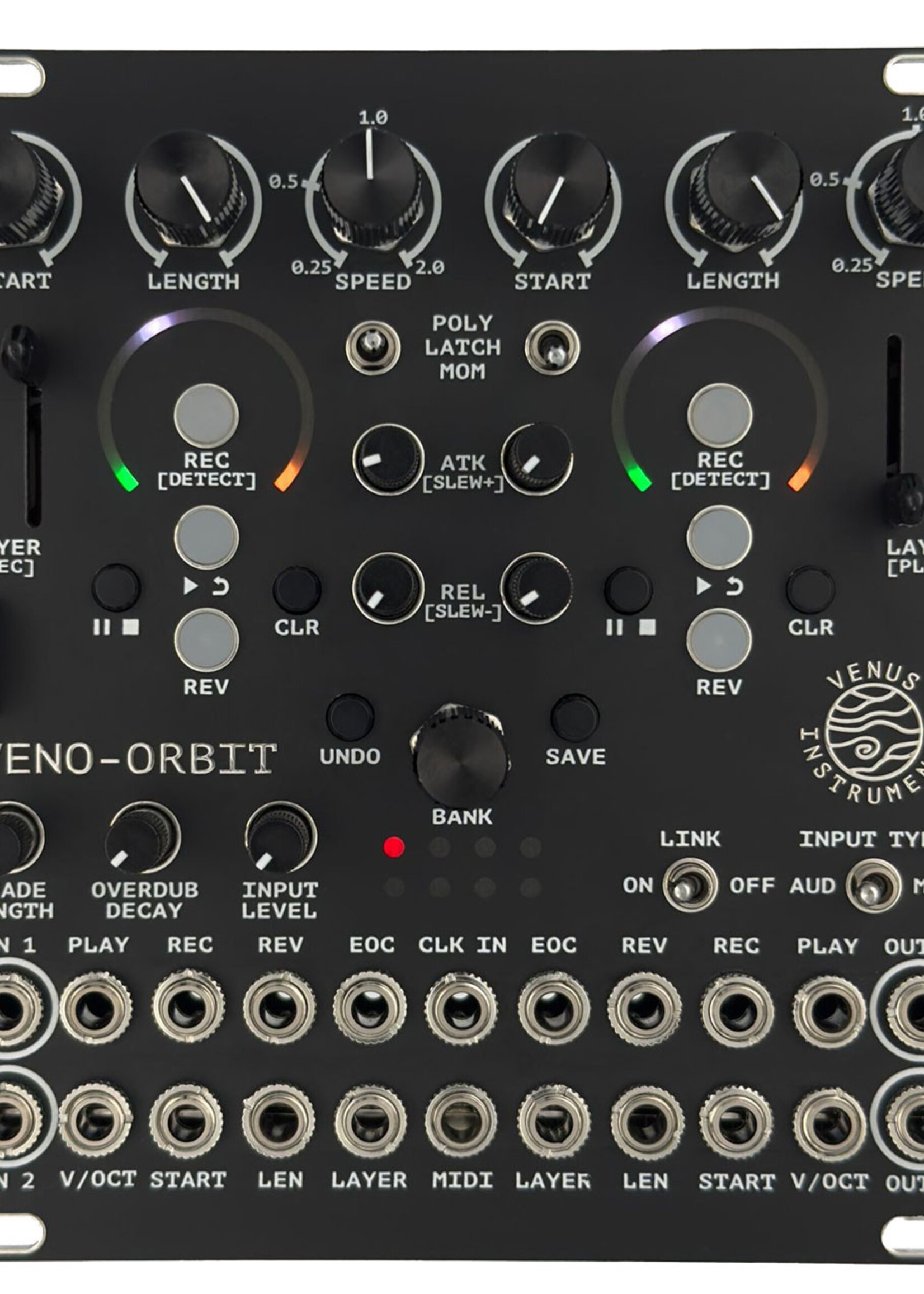

Venus Instruments Veno-Orbit: Polyphonic Freedom in Your Rack

Veno-Orbit shatters the limitations of traditional Eurorack samplers by introducing true polyphony to your modular environment. This 16HP module allows you to trigger up to 8 voices simultaneously, making it an ideal choice for crafting complex chords, layered textures, or complete rhythmic sections. Samples are loaded directly from an SD card and can be manipulated in real-time via a comprehensive array of CV inputs. With precision v/oct tracking, adjustable start/end points, and a crystal-clear stereo signal path, Veno-Orbit is the definitive tool for artists seeking the flexibility of a digital sampler combined with the tactile, immediate control of a modular synthesizer.

Key Features:

• 8-Voice Polyphonic Engine: Trigger and layer multiple samples with independent pitch and envelope settings.

• Stereo Fidelity: Professional-grade stereo signal path for expansive sonic landscapes.

• SD Card Connectivity: Rapidly load and manage high-quality sample libraries on the fly.

• Precision Pitch Control: Calibrated v/oct tracking for turning any sample into a melodic instrument.

• Dynamic CV Matrix: Voltage control over sample selection, pitch, start point, and playback length.

Technical Specifications:

• Width: 16HP

• Depth: 30mm

• Power Draw: +12V: 150mA, -12V: 50mA

• I/O: 4x Trigger Inputs, 4x V/Oct Inputs, Stereo Output Pair, MicroSD Slot.
