PreSonus NSB16.8

NSB 16.8

Article number: 210000000679

€749,00

Incl. tax

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios.

FEATURES

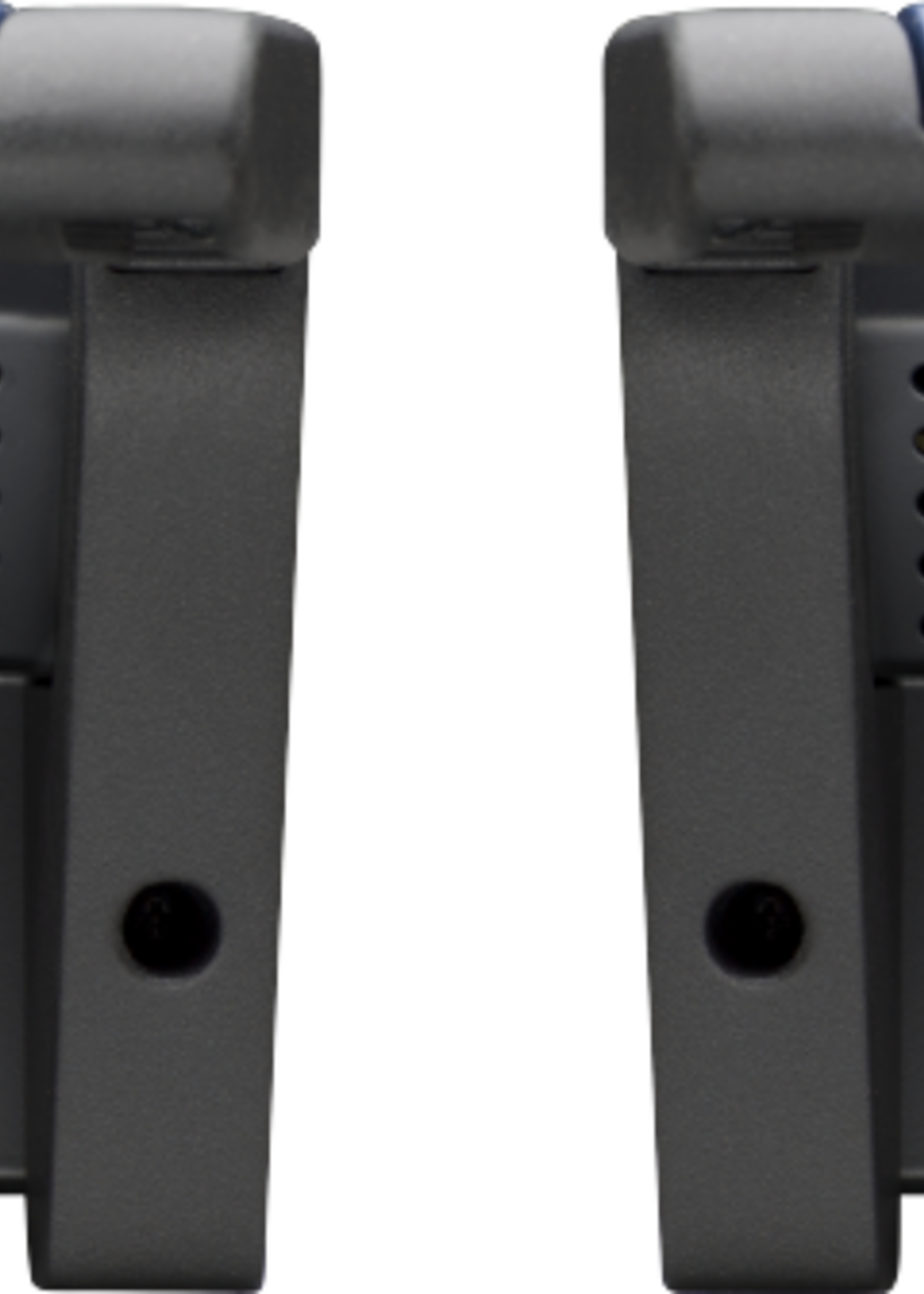

Rugged stage box enclosure with handles

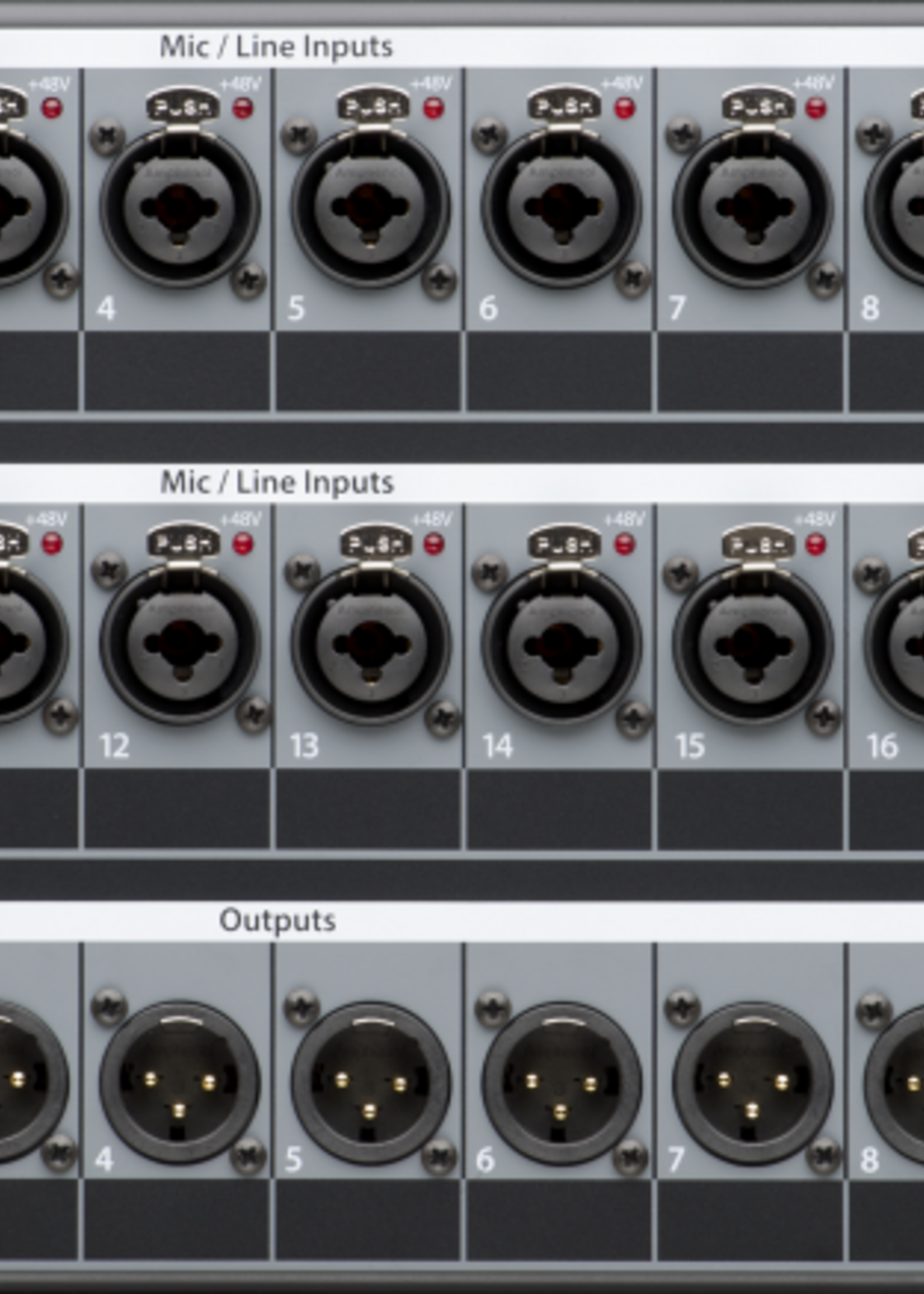

16 locking mic/line inputs and 8 locking XLR outputs
16 remote-controllable XMAX preamps
Gain compensation for shared inputs
2 AVB ports with locking XLR Ethernet jacks
32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
Easy setup and control from StudioLive® Series III consoles and from free PreSonus® UC Surface software

Electronics

VOLTAGE

220-240V EU

PHANTOM POWER

48 VDC, Switchable Per Channel (±2 VDC)

Performance

DIGITAL AUDIO DYNAMIC RANGE

115 dB (A-Weighted, 48 kHz)

Inputs

LINE INPUT CONNECTION TYPE

1/4" TRS, Balanced

LINE INPUTS FREQUENCY RESPONSE

20-20 kHz (±0.5 dBu at Unity Gain)

LINE INPUTS IMPEDANCE

10 kΩ

LINE INPUTS MAXIMUM LEVEL

+18 dBu

LINE INPUTS SIGNAL TO NOISE RATIO

94 dB

LINE INPUTS TOTAL HARMONIC DISTORTION

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

MICROPHONE INPUT CONNECTION TYPE

XLR Female, Balanced

MICROPHONE PREAMP COMMON MODE REJECTION RATIO

65 dB (1 kHz at Unity Gain)

MICROPHONE PREAMP FREQUENCY RESPONSE

20-20 kHz (±0.5 dBu at Unity Gain)

MICROPHONE PREAMP GAIN CONTROL RANGE

0 dB to +60 dB

MICROPHONE PREAMP INPUT IMPEDANCE

1 kΩ

MICROPHONE PREAMP MAXIMUM INPUT LEVEL

+12 dBu (Unity Gain)

MICROPHONE PREAMP SIGNAL TO NOISE RATIO

94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

MICROPHONE PREAMP TOTAL HARMONIC DISTORTION

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Miscellaneous

COMMODITY CODE

8517620000

POWER CABLE

Locking IEC

SUPPORTED SAMPLE RATES

48 kHz, 44.1 kHz

Hardware

DIGITAL AUDIO AVB AUDIO NETWORK PORTS

Locking XLR Ethernet
