NOH Modular Thyme: Perfect Balance for Your CV

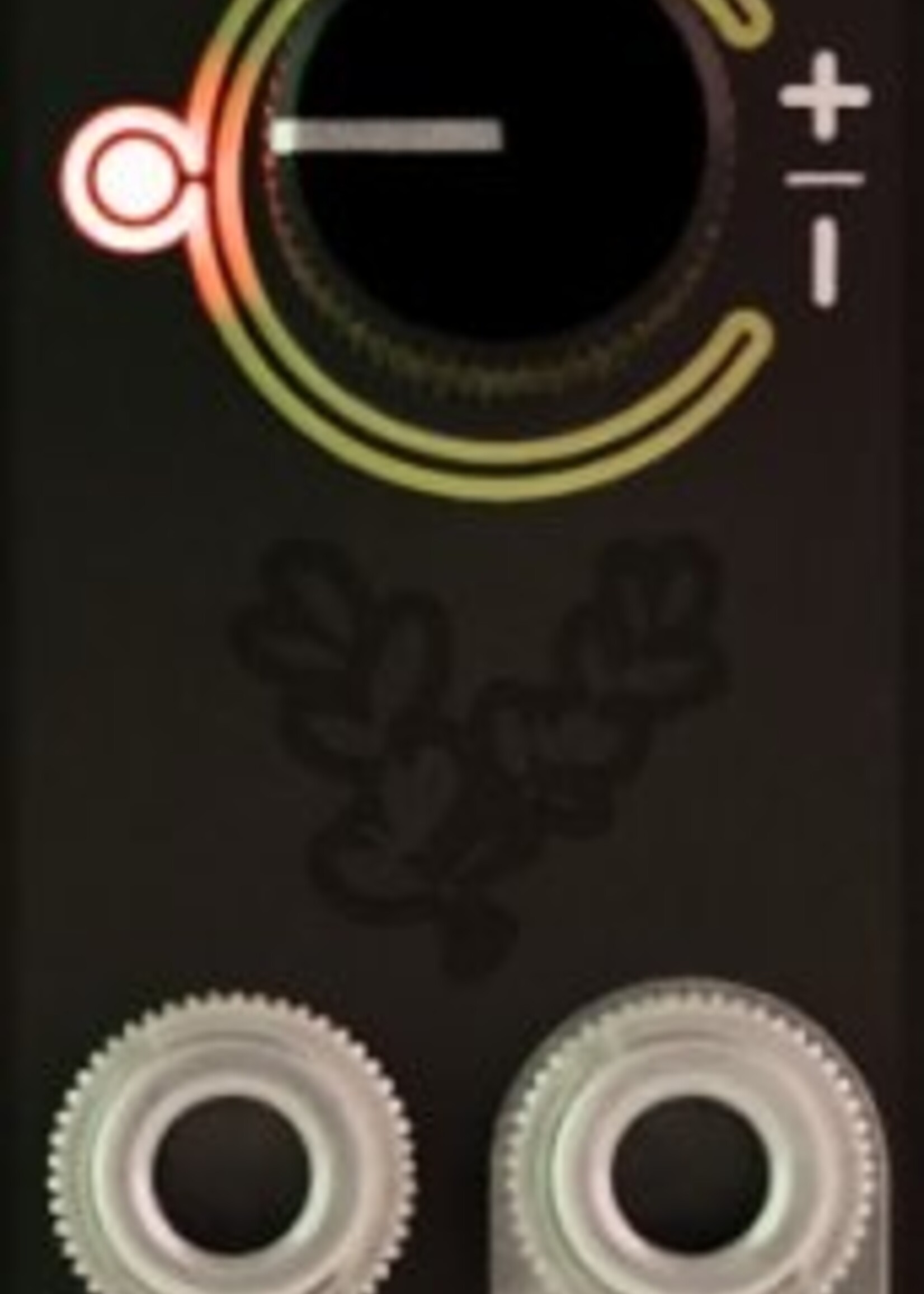

Thyme is the definitive tool for taming and sculpting control voltages within your modular system. This 8HP module provides four identical channels of attenuversion, allowing you to not only attenuate (shrink) an incoming signal but also invert it (flip the phase). Thanks to its precision internal voltage reference, each channel functions as a dedicated offset generator when its input is unpatched—perfect for remotely controlling parameters or adding a baseline voltage to a sequence. Thyme is an indispensable utility for any performer looking to gain granular control over the depth and direction of their modulation.

Key Features:

• Quad Attenuversion: Four independent channels for professional scaling and signal inversion.

• Precision Offsets: Generates a steady DC voltage for manual parameter control when unpatched.

• Bipolar Response: Knobs offer zero at center, positive gain to the right, and inverted gain to the left.

• LED Status Indicators: Bipolar LEDs provide instant visual feedback on signal polarity and amplitude.

• Skiff-Friendly Design: Compact 8HP footprint fits into any shallow performance case.

Technical Specifications:

• Width: 8HP

• Depth: 25mm

• Power Draw: +12V: 20mA, -12V: 20mA

• I/O: 4x Signal Inputs, 4x Scaled/Offset Outputs
