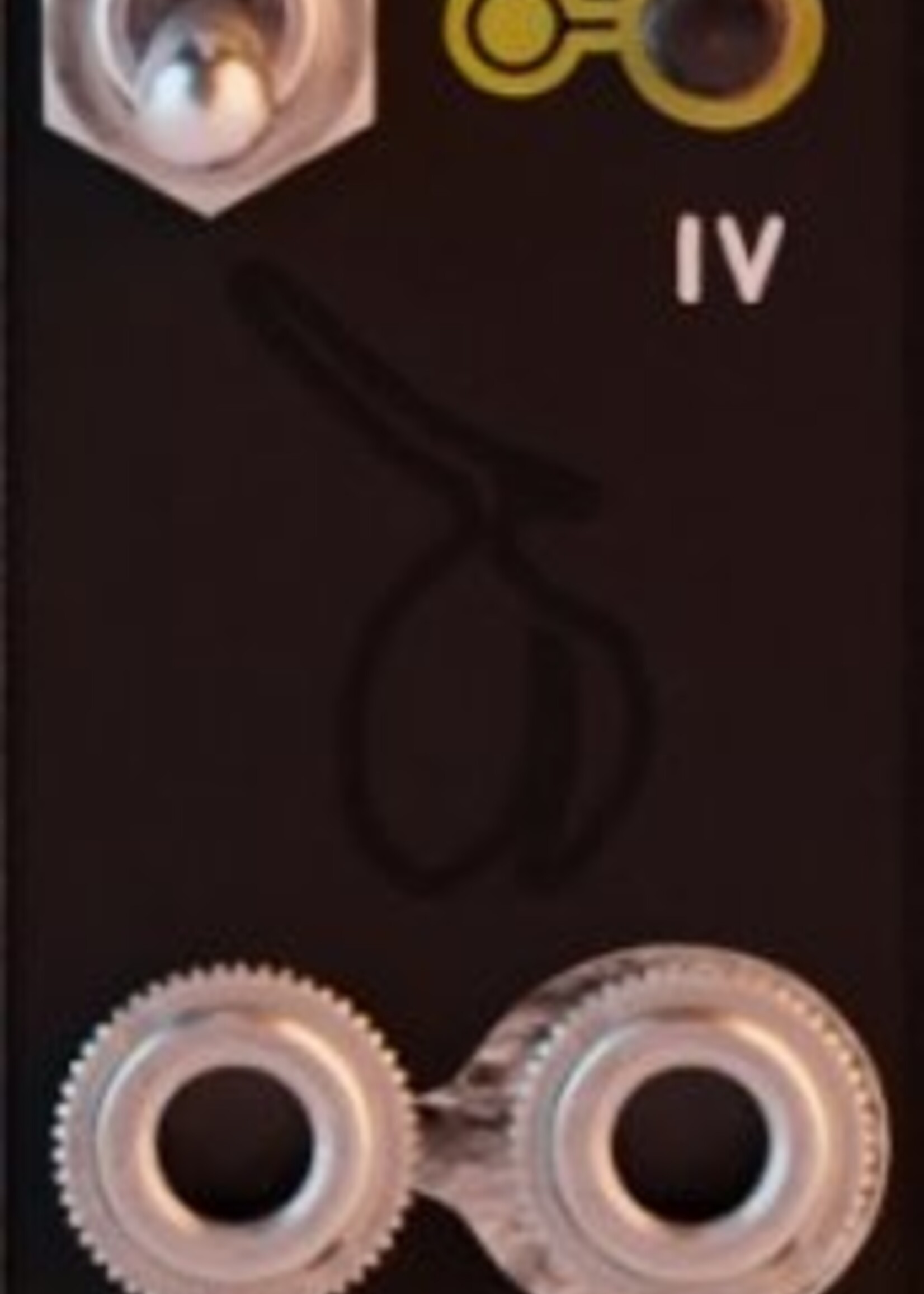

NOH Modular Olive: Tactile Performance Gating

Olive reintroduces a human element to your modular patches. This 4HP module provides four independent channels that allow you to manually pass or block signals with a simple press of a button. A dedicated toggle switch lets you choose between Momentary mode (signal passes only while the button is held) or Latching mode (on/off toggle) for each channel. When no input is connected, Olive automatically generates a +5V gate signal at its output, making it an excellent manual trigger source for triggering drums, envelopes, or clock resets during a live set.

Key Features:

• Quad Performance Gate: Four channels of signal routing in a compact 4HP footprint.

• Momentary & Latching Modes: Easily switch between rapid rhythmic gating and steady signal muting.





• Internal +5V Normalization: Functions as a quad manual trigger generator when inputs are unpatched.





• Real-time Visual Feedback: High-visibility LEDs indicate exactly when a signal is active.





• Performance-Ready Layout: Tactile buttons designed for reliable operation during intense live performances.

Technical Specifications:

• Width: 4HP





• Depth: 27mm





• Power Draw: +12V: 10mA, -12V: 10mA





• I/O: 4x Signal Inputs, 4x Switched Signal Outputs
