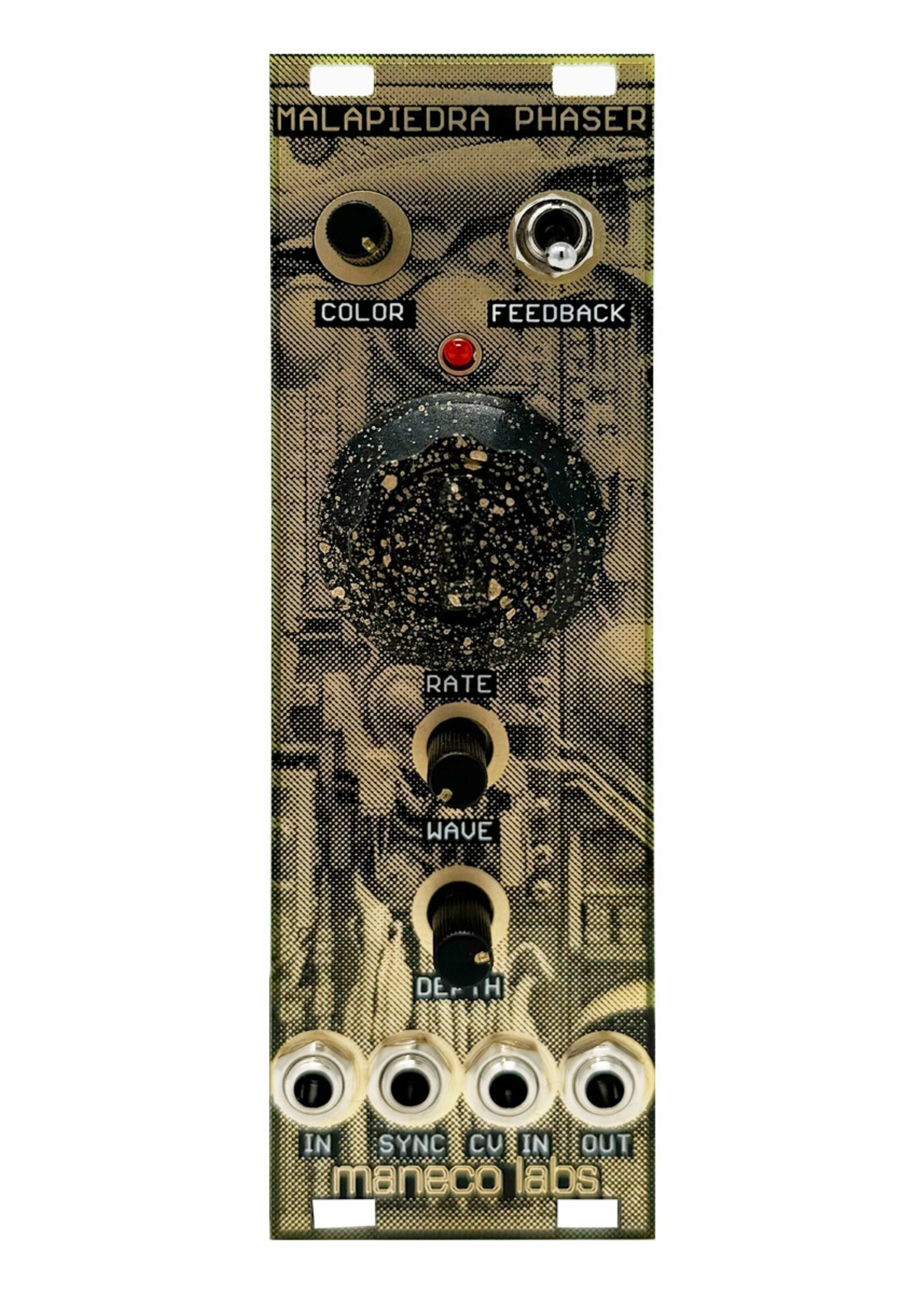

Maneco Mala Piedra: Classic 70s Phasing in Your Rack

The Maneco Labs Mala Piedra brings the legendary sound of the 1970s Electro-Harmonix Bad Stone phaser directly into the Eurorack format. This module is celebrated for its deep, syrupy phase shifts and warm analogue character. However, the Mala Piedra is more than a simple recreation; it integrates modern modular necessities such as an LFO with multiple selectable waveforms and a tap-tempo/sync input to align your modulations perfectly with your sequencer or clock source. From subtle harmonic movement to wild, psychedelic resonant sweeps, the Mala Piedra delivers a timeless sound enhanced by the power of external CV control.

Key Features:

• Vintage Circuitry: Faithful to the classic 6-stage phasing architecture of the 1970s.

• Multi-Waveform LFO: Select between various shapes to craft unique modulation movement.





• Tap & Sync Connectivity: Easily synchronize the phaser rate to an external clock or trigger signal.





• Feedback (Color) Control: Adjust the regeneration level for more pronounced, resonant sweeps.





• CV Implementation: Voltage control over the phase sweep for integration with external modulators.





Technical Specifications:

• Width: 8HP

• Depth: 25mm

• Power Draw: +12V: 55mA, -12V: 10mA

• I/O: Audio Input, Audio Output, Sync/Tap Input, CV Sweep Input
