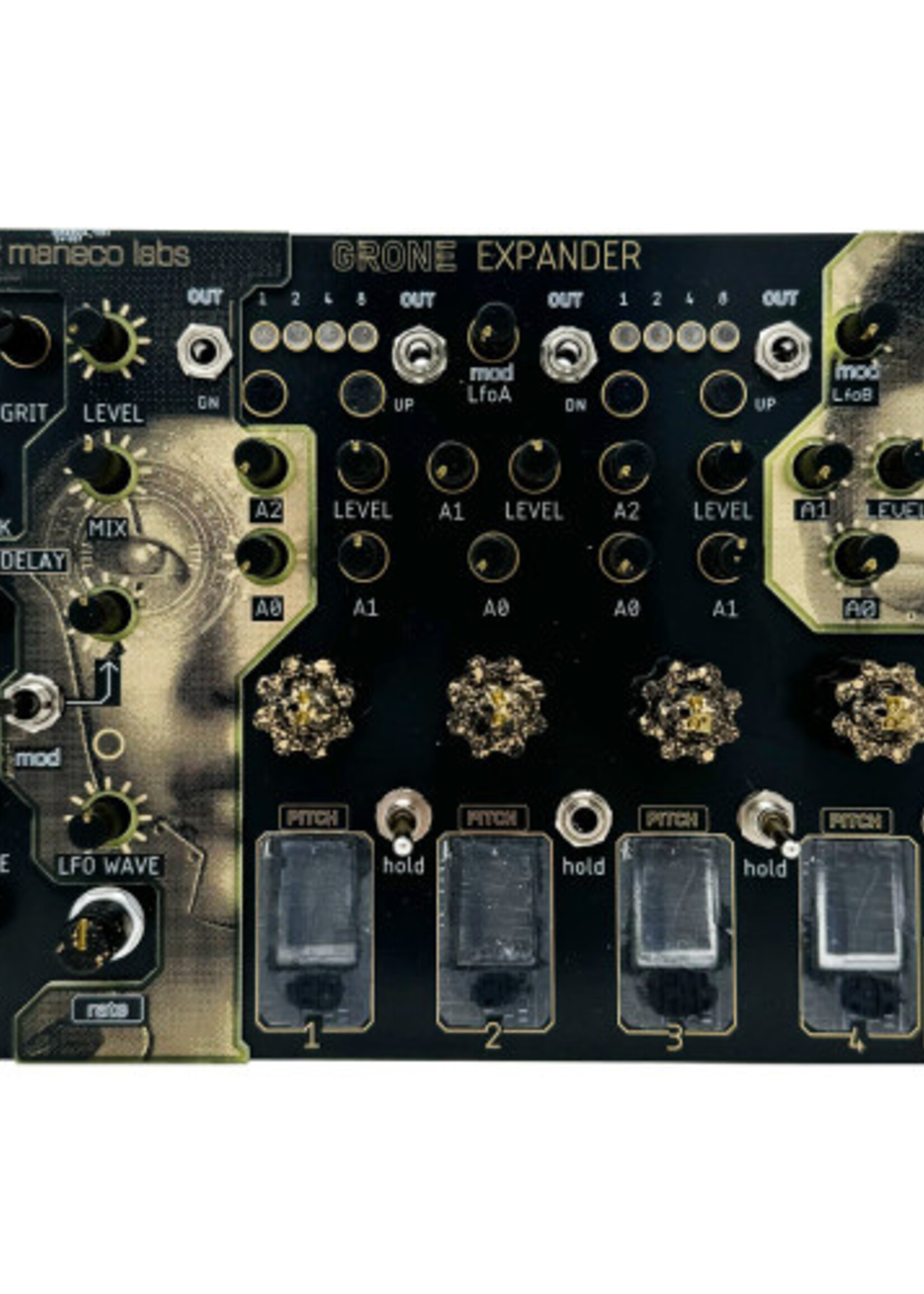

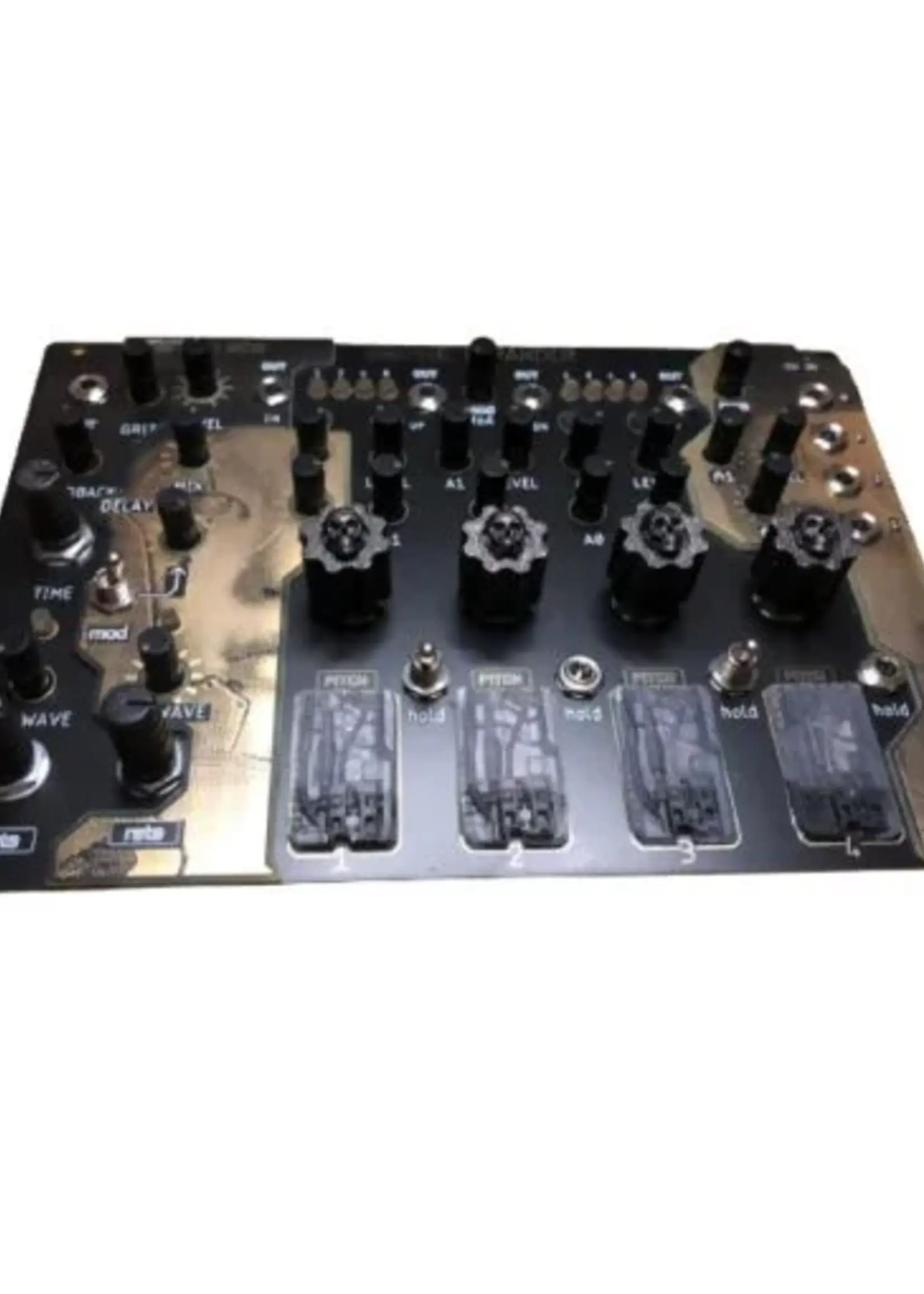

Maneco Grone Expander: Maximum Texture in Your Eurorack

The Maneco Labs Grone Expander is designed to drastically broaden the sonic horizons of your modular drone system. This module functions as a dedicated granular processor and modulation hub, perfectly voiced for the Grone series while remaining highly effective with any audio source. With the Expander, you can transform static signals into complex, fragmented sonic tapestries. Thanks to its comprehensive CV implementation, every facet of granular synthesis—such as grain size, density, and pitch—can be modulated by external sequencers or LFOs, ensuring your drones maintain a vivid and organic evolution.

Key Features:

• Granular Synthesis Engine: Adds a sophisticated layer of textural fragmentation to your modular patches.

• Extensive CV Implementation: Full voltage control over all critical granular and modulation parameters.

• External Audio Processing: Radically transform any Eurorack oscillator or external input into atmospheric clouds.

• Tactile Performance Layout: Immediate manual control over parameters for expressive real-time manipulation.

• System Synergy: Purpose-built to act as the ideal companion to the Grone Drone module.

Technical Specifications:

• Width: 16HP

• Depth: 25mm

• Power Draw: +12V: 120mA, -12V: 30mA

• I/O: Audio Input, Audio Output, CV Inputs (Size, Density, Pitch, Mod)
