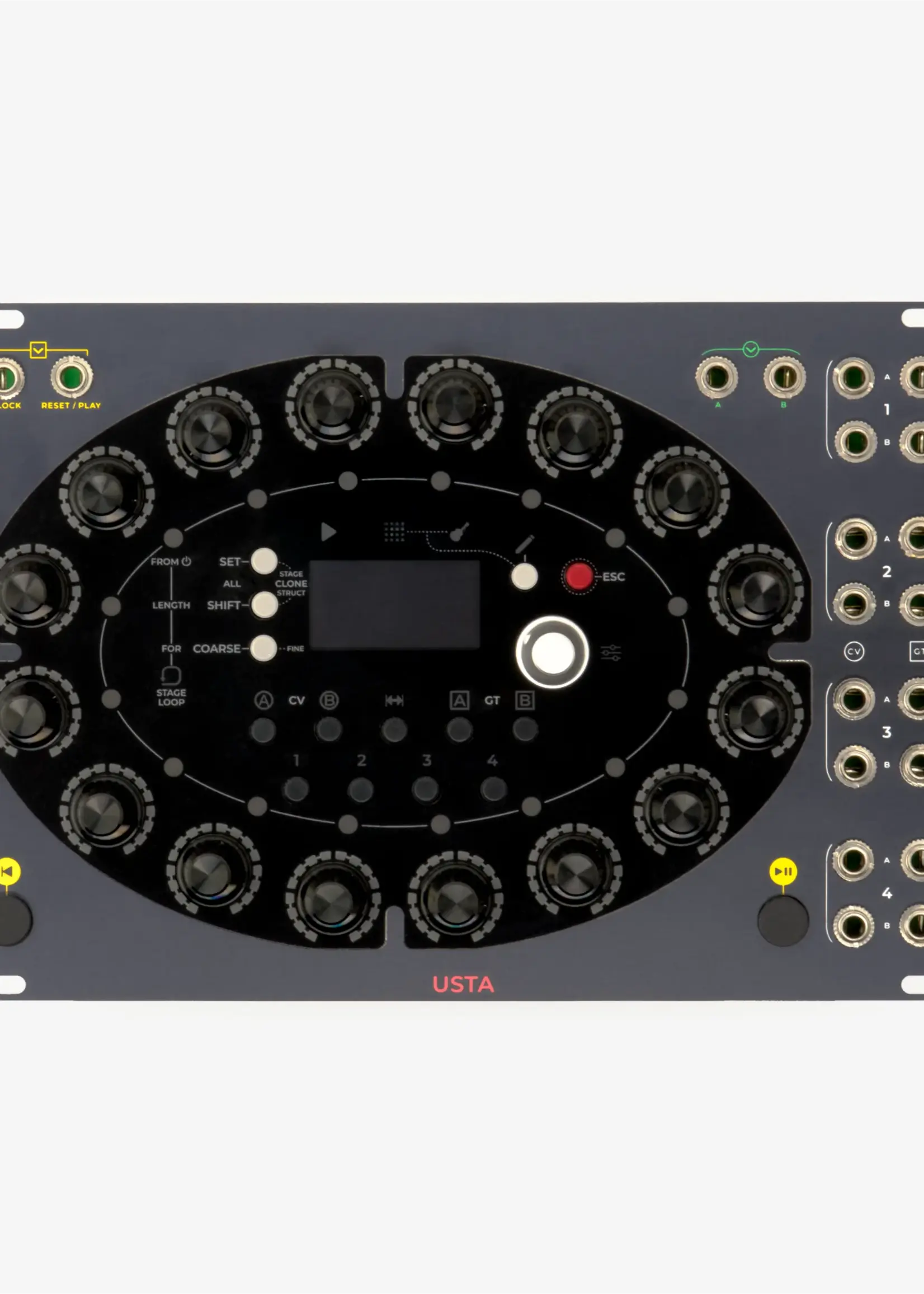

Frap Tools USTA Sequencer

USTA Sequencer

Article number: 210000001870

€785,00

Incl. tax

USTA is a 4×4 tracks sequencer for voltages and gates with variable stage duration, designed to quickly see and edit multiple voltage relationships in real time.

The Voltage Score

usta / ˈusta / s.f. [probably from an ancient Germanic form, cfr. German Nüster, English nostril] – the trail left by the prey. Idiom., more common: ‘good sense’, ‘wisdom’. Idiom. a usta ‘by heart’. The ‘Usta’ sequencer follows both of those meaning: literally, it gives your patch a trail to follow; more broadly, it offers you a way to approach your composition ‘by heart’, without too much planning.

Size	36 HP
Depth	38 mm
Current draw	260 mA @ +12 V 50 mA @ -12 V
Recommended warmup time	30 min
CV input impedance	> 90 KΩ
CV input resolution	12 bit
CV input amplitude steps	~ 4.15 mV
CV input voltage span	-5 to 10 V
Gate input impedance	> 100 KΩ
Gate input minimum trigger amplitude	> 1.5 V
Gate input minimum pulse period	800 µs
CV output impedance	< 50 Ω
CV output resolution	16 bit
CV output amplitude steps	~ 0.26 mV
CV output voltage span	-5 to 10 V
Gate output impedance	< 50 Ω
Gate output amplitude	10 V
